Timing Cover






Tighten bolts in numerical order as shown.

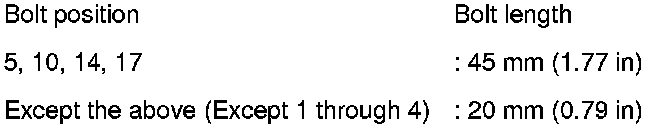

- Use the following for locating M6 bolts.

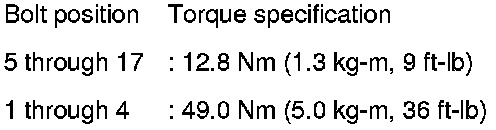

- Tighten bolts to the specified torque.
