Right Transfer Case, Input and Output Drive Shaft Removal

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

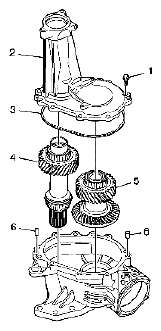

Fig 1: Identifying Right Transfer Case, Input & Output Drive Shaft Components

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME TABLE

Callout	Component Name
1	Transfer Case Half Bolts (Qty: 11)
2	Transfer Case - Right
3	Transfer Case Seal
4	Transfer Case Input Shaft
5	Transfer Case Rear Output Drive Shaft
6	Transfer Case Half Locating Pins (Qty: 2) Remove the pins only if damaged. Inspect the case for similar damage. Refer to TRANSFER CASE CLEANING AND INSPECTION .
