Reference waveform No. 1

Driver, passenger and rear end door antenna request signals (Request signal (1) transmitted by each door antenna when each door request switch is pushed)

WAVEFORM 1 REFERENCE

Measurement terminal

Driver side door antenna

CH1: "G44-2" to "G44-9"
CH2: "G44-1" to "G44-9"

Passenger side door antenna

CH1: "G44-24" to "G44-9"
CH2: "G44-23" to "G44-9"

Rear end door antenna

CH1: "G44-4" to "G44-9"
CH2: "G44-3" to "G44-9"

Oscilloscope setting

CH1: 5 V/DIV, CH2: 5 V/DIV
TIME: 40 ms/DIV

Measurement condition

Request switch of each door is pushed with remote controller carried

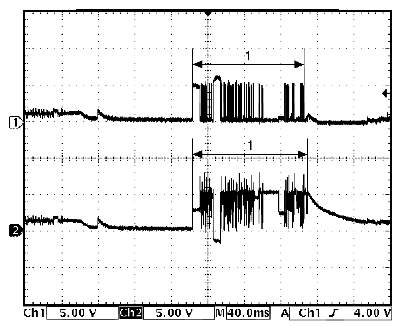

Fig 1: Waveform 1 Signal Pattern

Courtesy of SUZUKI OF AMERICA CORP.
