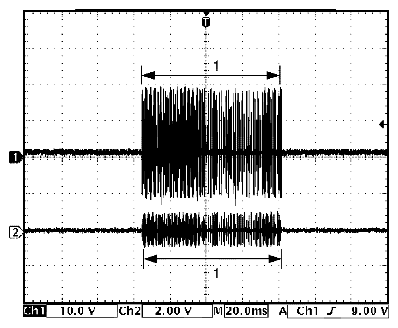

Reference waveform No. 2
Center antenna signal
(Request signal (1) transmitted by center antenna when each door request switch is pushed)
WAVEFORM 2 REFERENCE
| Measurement terminal | CH1: "G44-6" to "G44-9" CH2: "G44-5" to "G44-9" |
| Oscilloscope setting | CH1: 10 V/DIV, CH2: 2 V/DIV TIME: 20 ms/DIV |
| Measurement condition |
|
