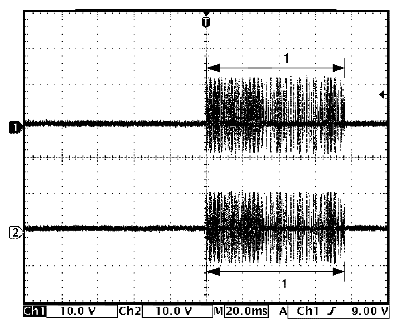

Reference waveform No. 3
Luggage room antenna signal
(Request signal (1) transmitted by luggage room antenna when each door request switch is pushed)
WAVEFORM 3 REFERENCE
| Measurement terminal | CH1: "G44-8" to "G44-9" CH2: "G44-7" to "G44-9" |
| Oscilloscope setting | CH1: 10 V/DIV, CH2: 10 V/DIV TIME: 20 ms/DIV |
| Measurement condition | Request switch of each door is pushed with remote controller carried |
