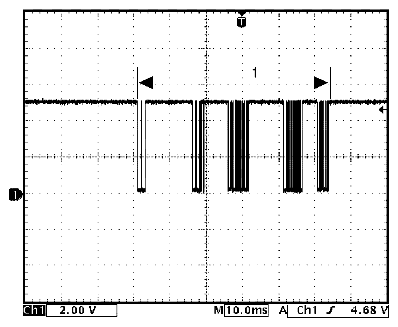

Reference waveform No. 5
Steering lock unit signal
(Signal (1) communicated between keyless start control module and steering lock unit when measurement condition described below applies)
WAVEFORM 5 REFERENCE
| Measurement terminal | CH1: "G44-29" to "G44-9" |
| Oscilloscope setting | CH1: 2 V/DIV TIME: 10 ms/DIV |
| Measurement condition |
|
