Reference waveform No. 6
Driver and passenger side door lock switch signals.
(This signal indicates door lock status.)

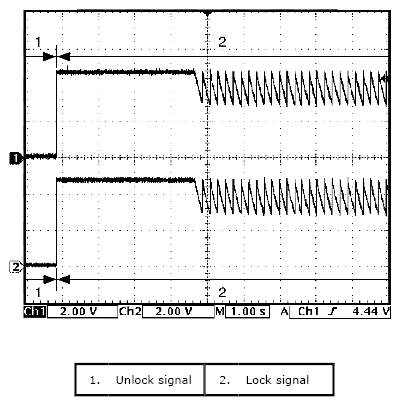

In case the position of driver and passenger side door lock is changed from the unlock to the lock.
WAVEFORM 6 REFERENCE
| Measurement terminal | Driver side door lock switch
Passenger side door lock switch
|
| Oscilloscope setting | CH1: 2 V/DIV CH2: 2 V/DIV TIME: 1 s/DIV |
| Measurement condition | Press lock side of manual door lock switch |

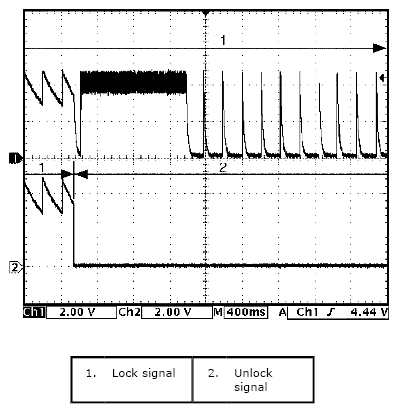

In case the position of passenger side door lock is changed from the lock to the unlock when the position of driver and passenger side door is at the lock
WAVEFORM 6 REFERENCE
| Measurement terminal | Driver side door lock switch
Passenger side door lock switch
|
| Oscilloscope setting | CH1: 2 V/DIV CH2: 2 V/DIV TIME: 400 ms/DIV |
| Measurement condition | Driver door is at lock position and passenger side door is at unlock position |

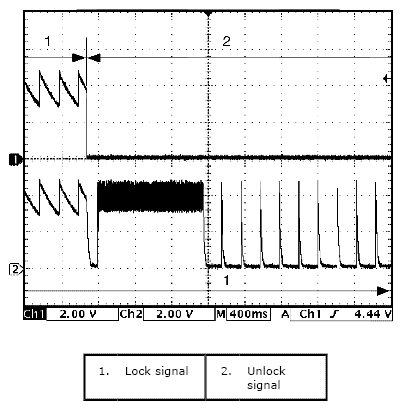

In case the position of driver side door lock is changed from the lock to the unlock when the position of driver and passenger side door is at the lock.
WAVEFORM 6 REFERENCE
| Measurement terminal | Driver side door lock switch
Passenger side door lock switch
|
| Oscilloscope setting | CH1: 2 V/DIV CH2: 2 V/DIV TIME: 400 ms/DIV |
| Measurement condition | Driver door is at unlock position and passenger side door is at lock position |

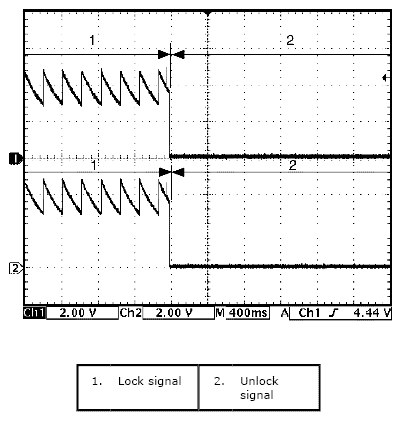

In case the position of driver and passenger side door lock is changed from the lock to the unlock.
WAVEFORM 6 REFERENCE
| Measurement terminal | Driver side door lock switch
Passenger side door lock switch
|
| Oscilloscope setting | CH1: 2 V/DIV CH2: 2 V/DIV TIME: 400 ms/DIV |
| Measurement condition | Press unlock side of manual door lock switch |
