Engine Control System Circuit Diagram: Notes
NOTE:
For identification of each cylinder, refer to
PRECAUTIONS FOR IDENTIFICATION OF CYLINDER:J24B
.

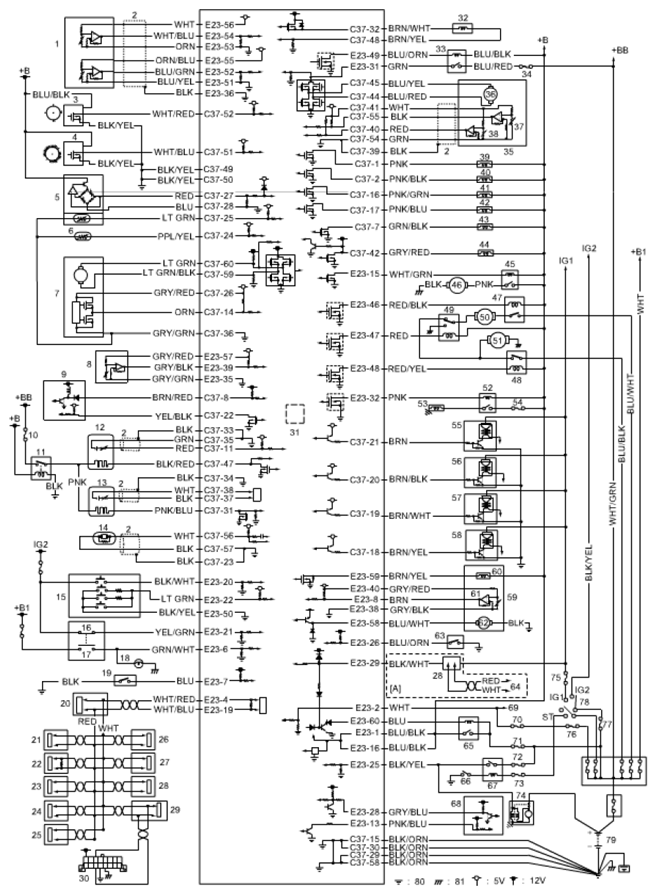

Fig 1: Engine Control System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

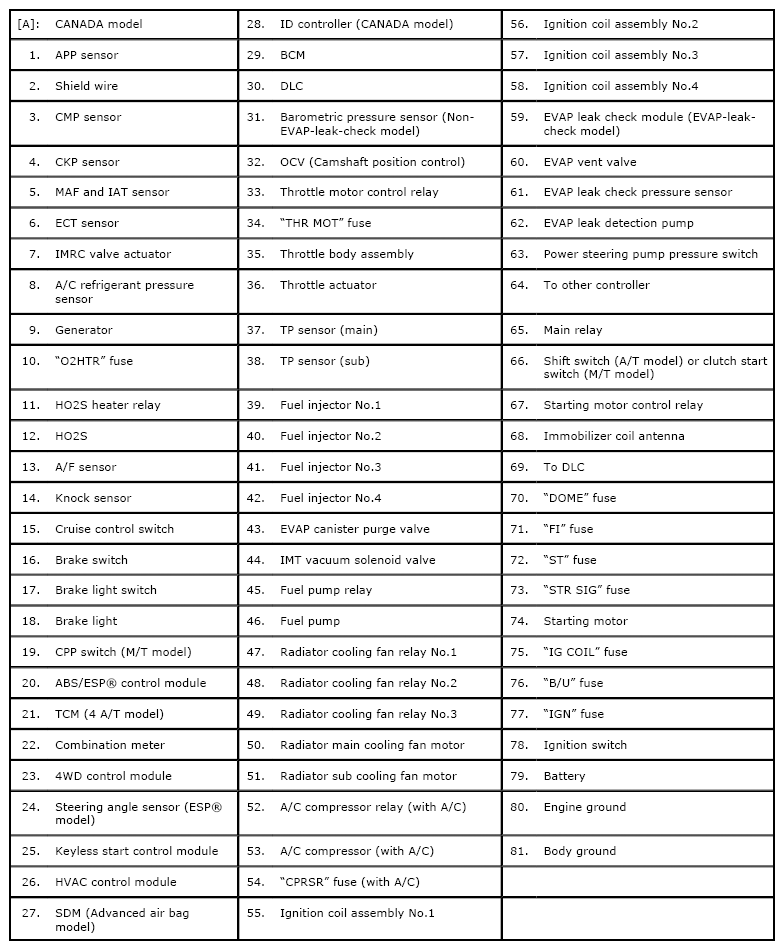

Fig 2: Engine Control System Circuit Diagram Legends
Courtesy of SUZUKI OF AMERICA CORP.
