DTC P0122: Throttle / Pedal Position Sensor / Switch "A" (Main) Circuit Low; P0123: Throttle / Pedal Position Sensor / Switch "A" (Main) Circuit High: Wiring Diagram

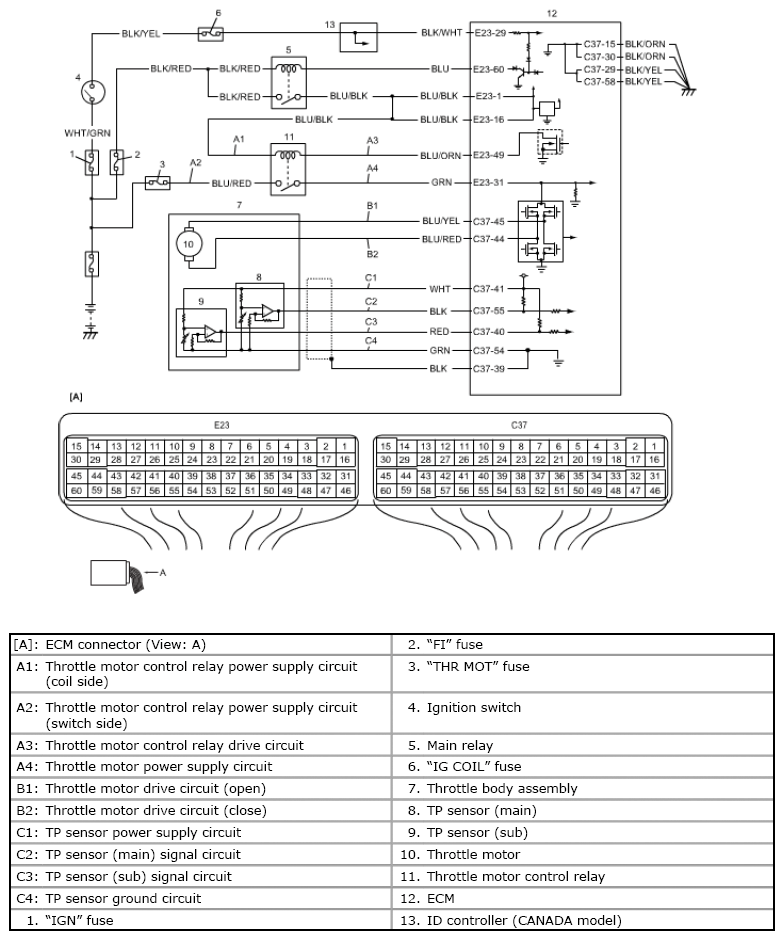

Fig 1: Throttle/Pedal Position Sensor/Switch - Wiring Diagram

Courtesy of SUZUKI OF AMERICA CORP.
