Control Module: Service and Repair




4WD Control Module Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove trunk right side trim. Service and Repair

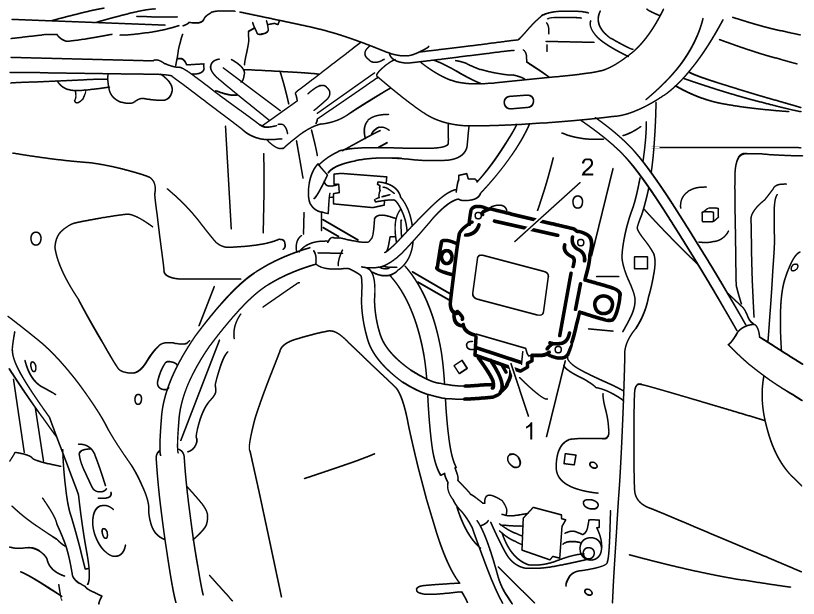

3) Disconnect connector (1) from 4WD control module (2).
4) Remove 4WD control module.






Installation

Reverse removal procedure.
