Steering Gear Case Assembly Components

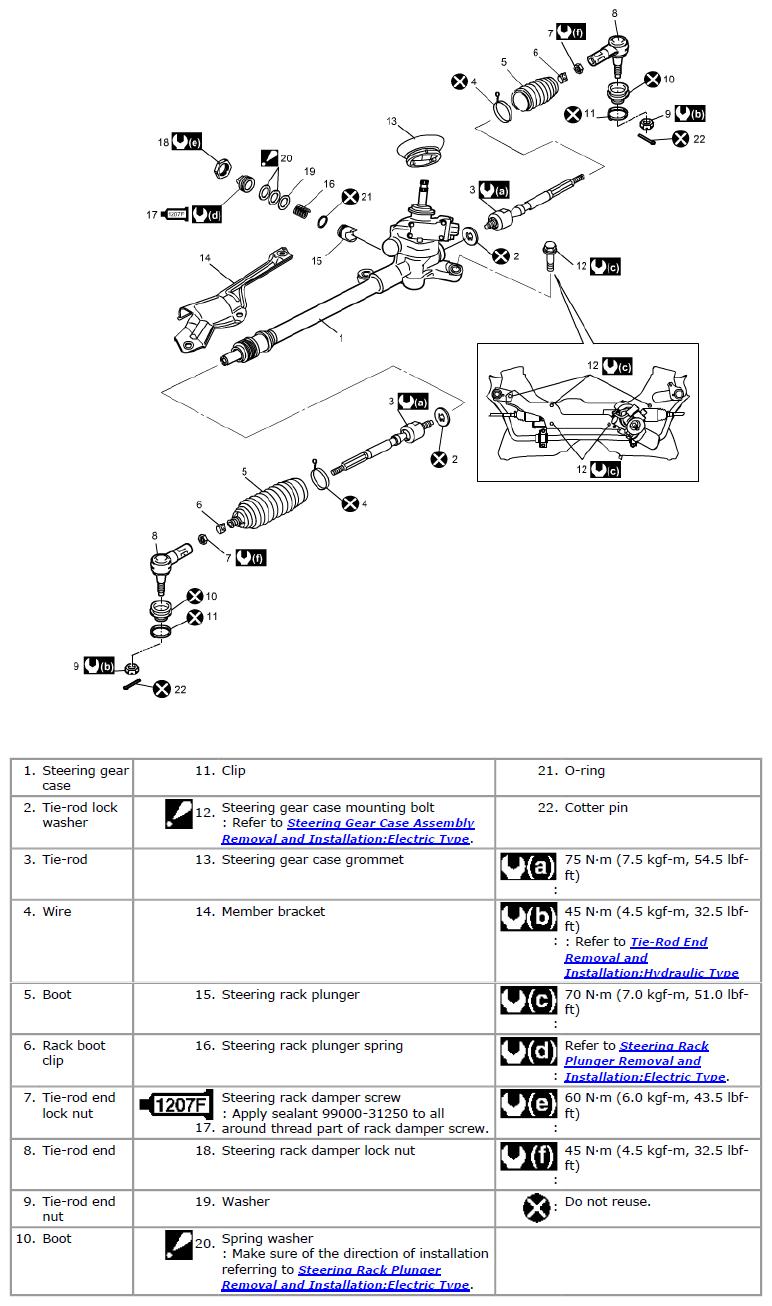

Fig 1: Identifying Steering Gear Case Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
