Keyless Start Control Module Power and Ground Circuit Check: Wiring Diagram

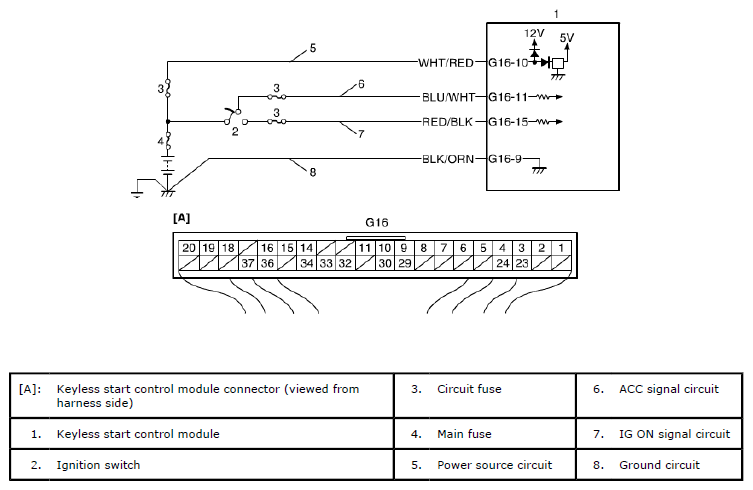

Fig 1: Keyless Start Control Module Power And Ground Wiring Diagram
G06869305Courtesy of SUZUKI OF AMERICA CORP.
