Control Unit: Service and Repair

Differential Lock Control Unit: Removal and Installation

Removal

1) Disconnect the battery negative terminal. Refer to [Battery: Removal and Installation] Removal and Replacement.
2) Remove jack and tools.
3) Remove upper bracket of center seat belt retractor and belt assembly. Refer to [Rear Seat Belt: Removal and Installation] Removal and Installation.
4) Remove the necessary push pins and reposition rear panel out of the way. Refer to [Body Side Trim: Removal and Installation] Body Side Trim Removal and Installation.
5) Reposition the carpet to access differential lock control unit to disconnect connector.

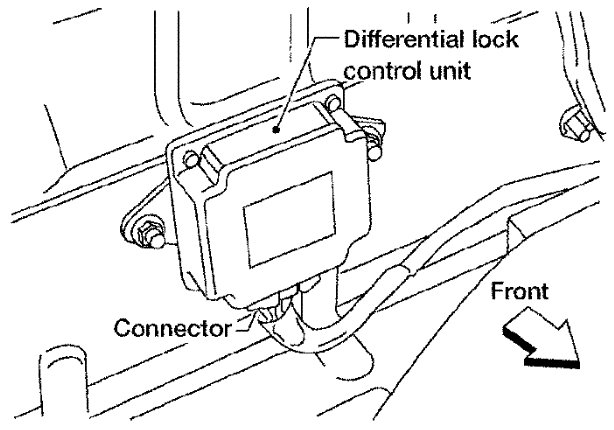

6) Remove the two nuts and remove differential lock control unit.

Installation

Note the following, and installation is in the reverse order of removal.

- When installing differential lock control unit, tighten nuts to the specified torque.
