Mode 6 - SUZUKI: Equator

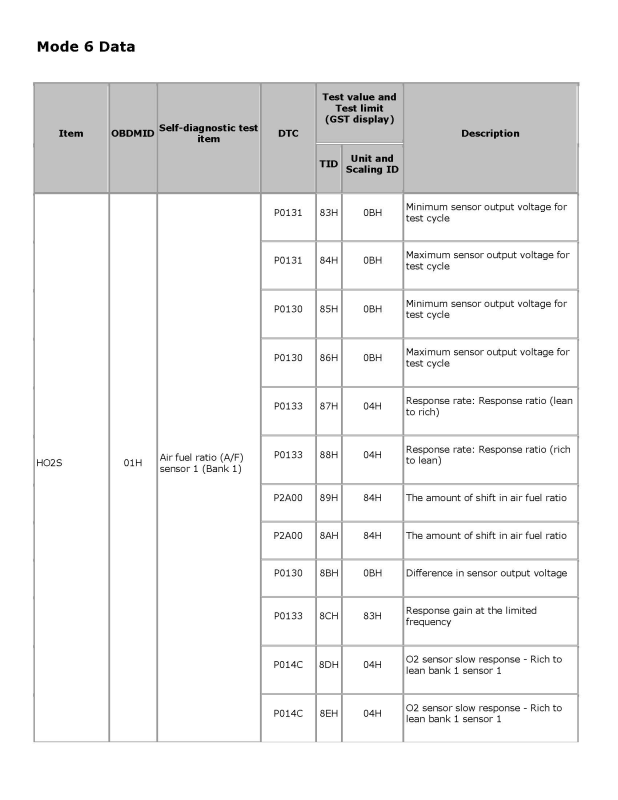

Fig 1: Mode $06 Data For Equator (1 Of 10)

G00525809

Courtesy of SUZUKI OF AMERICA CORP.

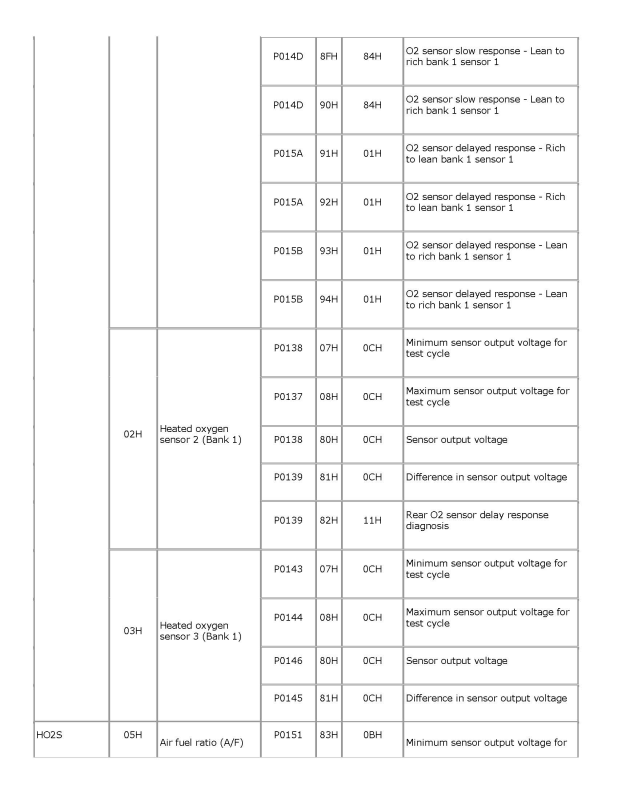

Fig 2: Mode $06 Data For Equator (2 Of 10)

G00525810

Courtesy of SUZUKI OF AMERICA CORP.

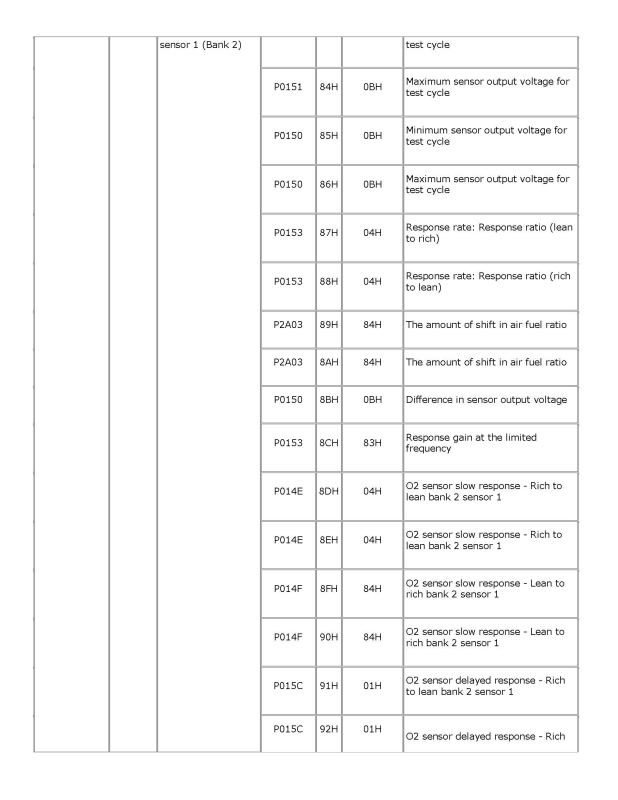

Fig 3: Mode $06 Data For Equator (3 Of 10)

G00525811

Courtesy of SUZUKI OF AMERICA CORP.

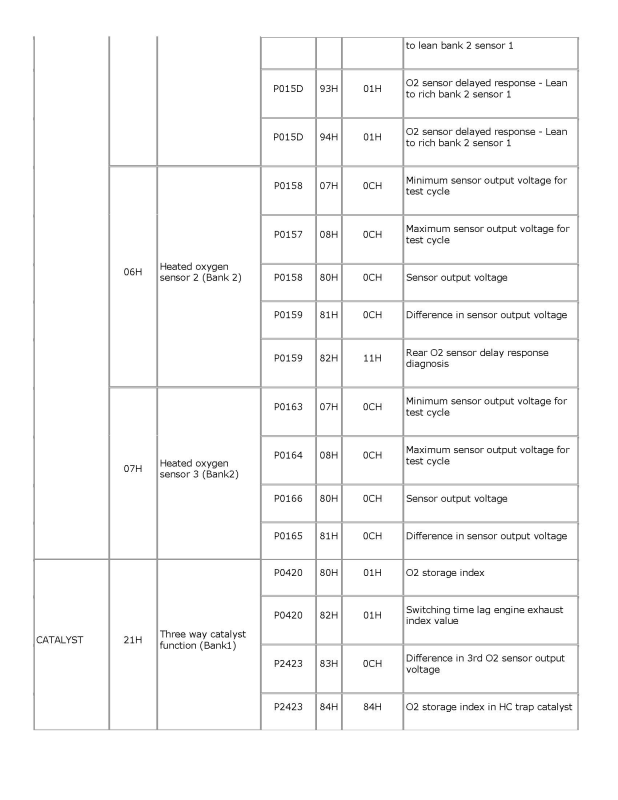

Fig 4: Mode $06 Data For Equator (4 Of 10)

G00525812

Courtesy of SUZUKI OF AMERICA CORP.

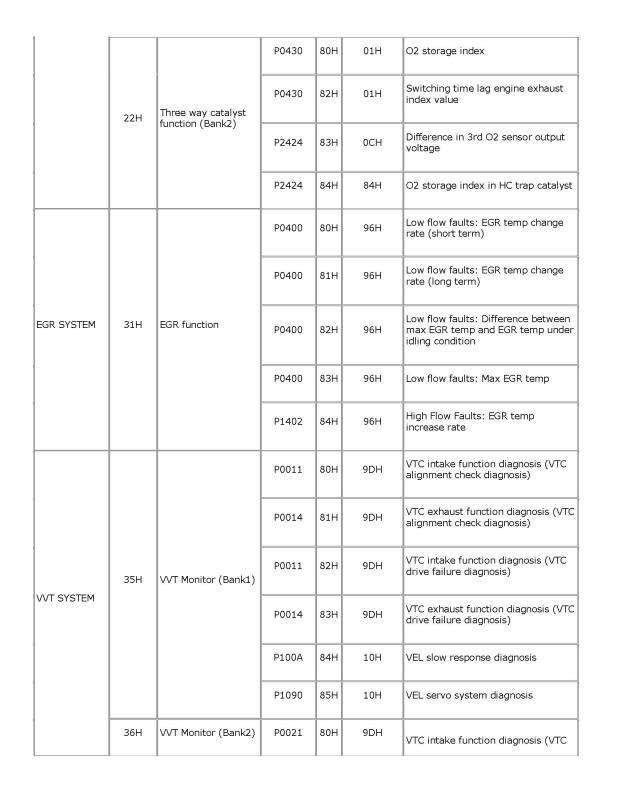

Fig 5: Mode $06 Data For Equator (5 Of 10)

G00525813

Courtesy of SUZUKI OF AMERICA CORP.

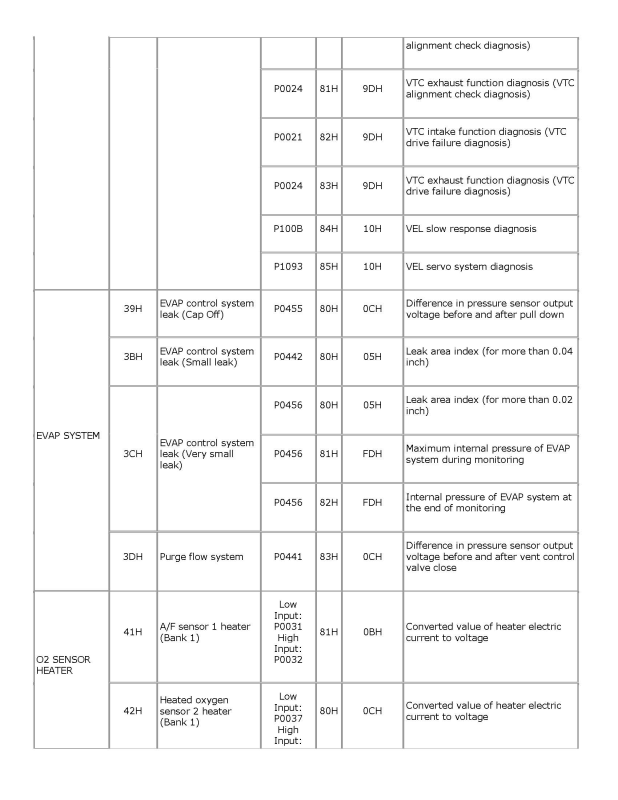

Fig 6: Mode $06 Data For Equator (6 Of 10)

G00525814

Courtesy of SUZUKI OF AMERICA CORP.

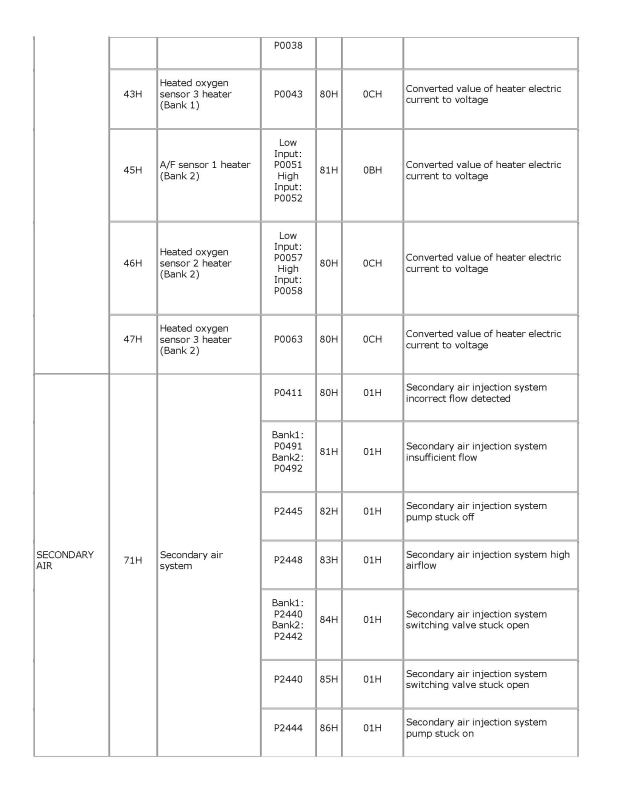

Fig 7: Mode $06 Data For Equator (7 Of 10)

G00525815

Courtesy of SUZUKI OF AMERICA CORP.

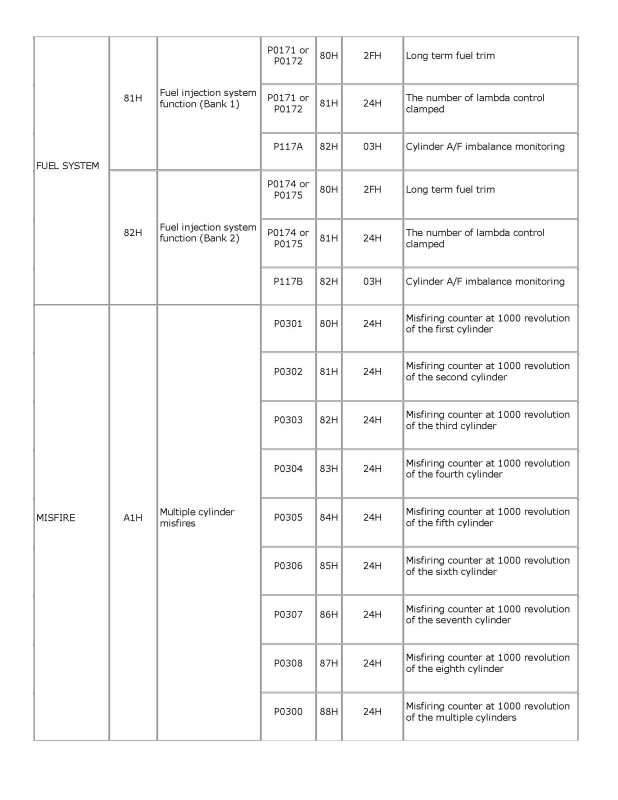

Fig 8: Mode $06 Data For Equator (8 Of 10)

G00525816

Courtesy of SUZUKI OF AMERICA CORP.

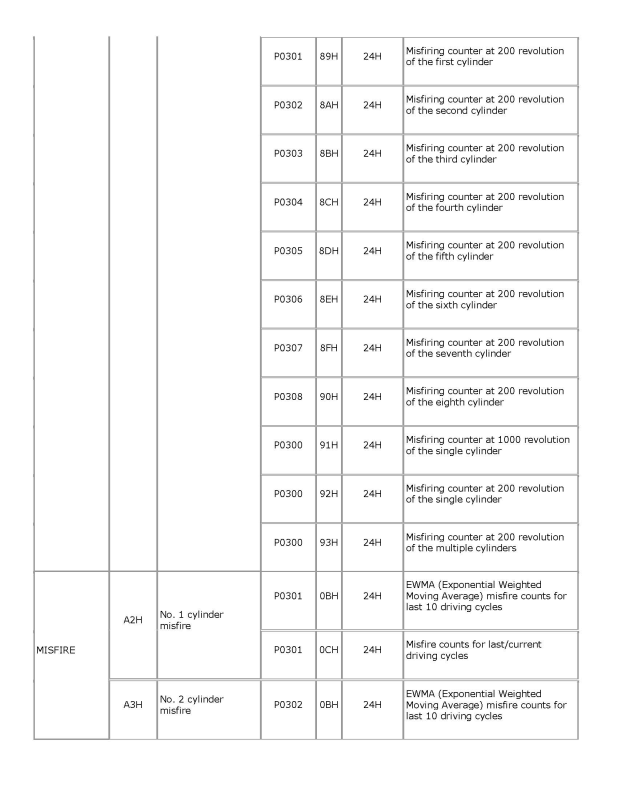

Fig 9: Mode $06 Data For Equator (9 Of 10)

G00525817

Courtesy of SUZUKI OF AMERICA CORP.

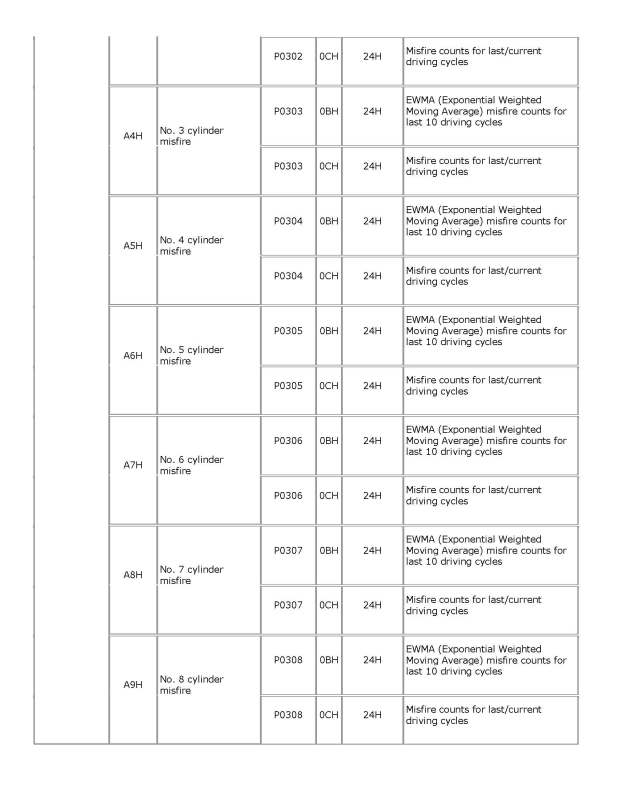

Fig 10: Mode $06 Data For Equator (10 Of 10)

G00525818

Courtesy of SUZUKI OF AMERICA CORP.
