Lighting Systems Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

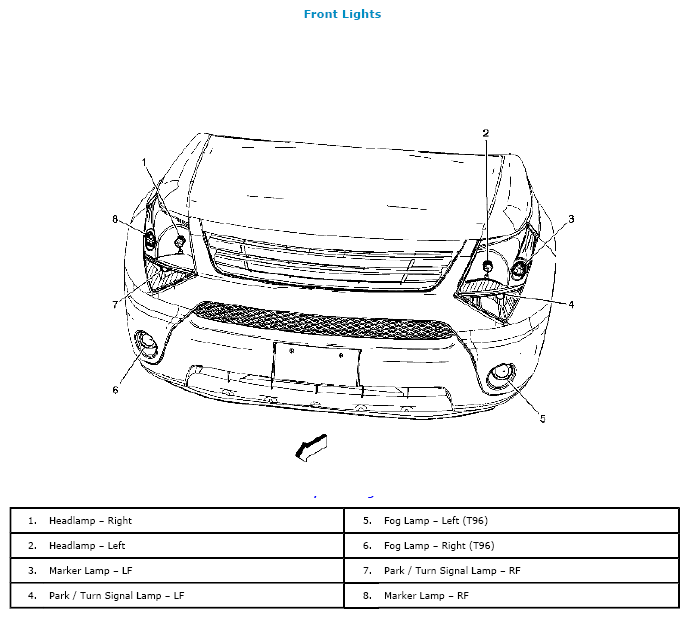

Fig 1: Identifying Front Lights Components
G04845076Courtesy of SUZUKI OF AMERICA CORP.

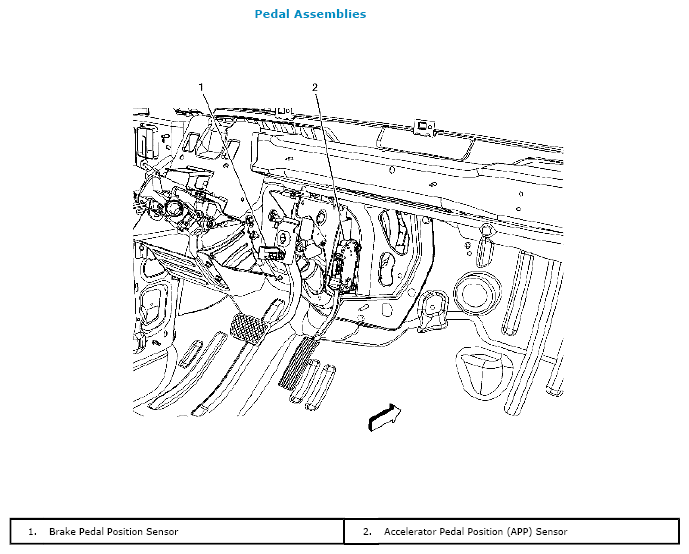

Fig 2: Identifying Pedal Assemblies Components
G04845077Courtesy of SUZUKI OF AMERICA CORP.

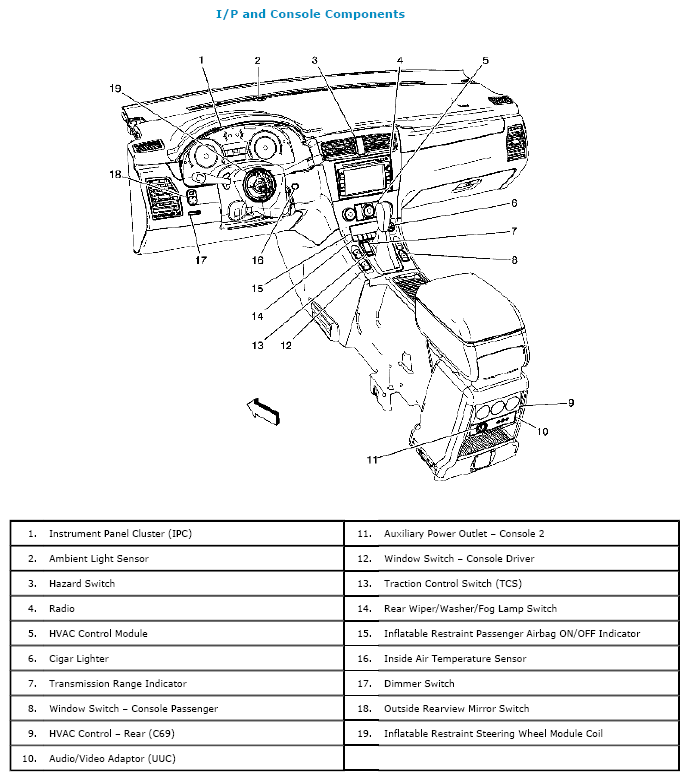

Fig 3: Identifying I/P & Console Components
G04845078Courtesy of SUZUKI OF AMERICA CORP.

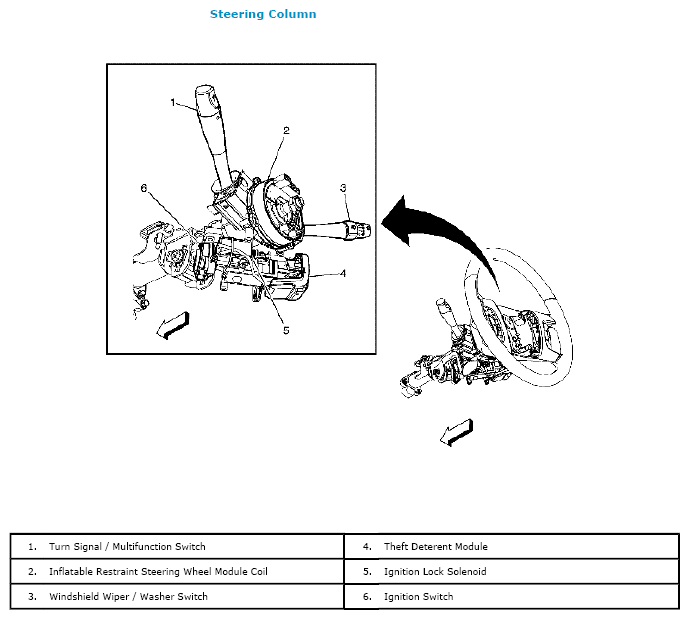

Fig 4: Identifying Steering Column Components
G04845079Courtesy of SUZUKI OF AMERICA CORP.
Fig 5: Identifying Front Headliner Components
G04845080Courtesy of SUZUKI OF AMERICA CORP.

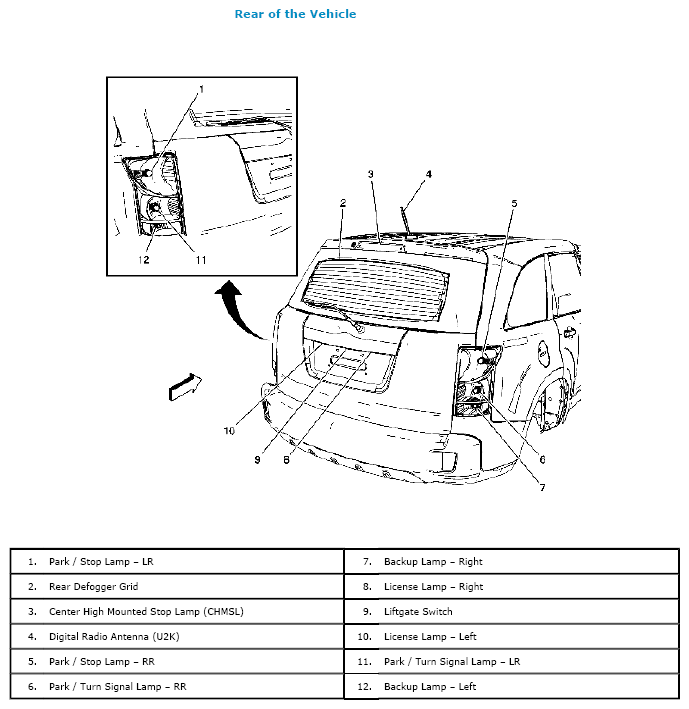

Fig 6: Identifying Vehicle Rear Components
G04845081Courtesy of SUZUKI OF AMERICA CORP.
