Output Flange Installation
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

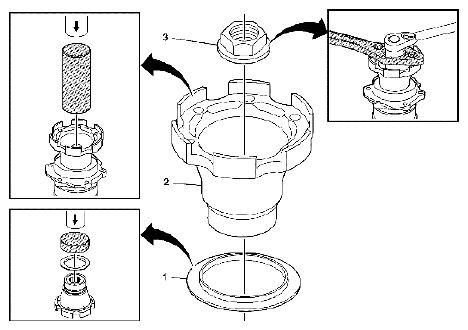

CALLOUT AND COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to FASTENER NOTICE
. Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - TRANSFER CASE - GETRAG 760 . |
|
| 1 | Transfer Case Rear Output Shaft Oil Slinger Tip: Use a press with the DT-48077 in order to install the slinger. Special Tools DT-48077 Output Shaft Slinger Installer |
| 2 | Transfer Case Rear Output Shaft Flange Tip: Use a press with the J 5590 to install the flange. Special Tools J 5590 Pinion Bearing Race Installer - Rear |
| 3 | Transfer Case Rear Output Shaft Nut Tip: Use a 30 mm socket or J 29873. Tightening torque 235 N.m (173 lb ft) Special Tools J-08614-A Pinion Flange Holder and Remover |
