Component Function Check

COMPONENT FUNCTION CHART

Step Action YES NO
1  CHECK FRONT WIPER (AUTO STOP) SIGNAL CHECK
SDT data list

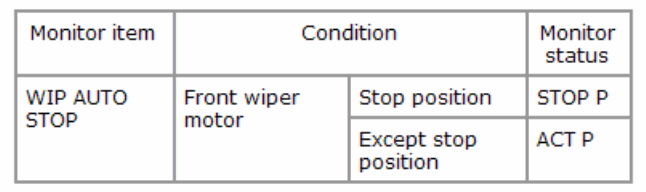

  1. Select "WIP AUTO STOP" of IPDM E/R data list item.
  2. Operate the front wiper.
  3. Check that "WIP AUTO STOP" changes to "STOP P" and "ACT P" linked with the wiper operation.
G00518853Courtesy of SUZUKI OF AMERICA CORP.

Is the status of item normal? 		 Front wiper auto stop signal circuit is normal. Refer to [Diagnosis Procedure ].
