Main Fuel Level Sensor
Reference: MAIN FUEL LEVEL SENSOR REMOVAL AND INSTALLATION

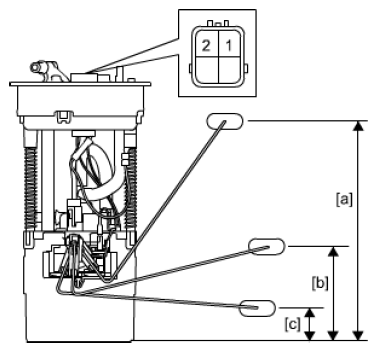

Check resistance between terminals (1) and (2) at each float position [a], [b] and [c].
If measured resistance is out of specification, replace main fuel level sensor.
Main fuel level sensor resistance
SUB FUEL LEVEL SENSOR RESISTANCE SPECIFICATIONS
| Float position | Resistance | |
|---|---|---|
| [a] | 208 mm (8.19 in.) | 19.0 - 21.0 Ω |
| [b] | 92.3 mm (3.63 in) | 79.4 - 89.4 Ω |
| [c] | 40.4 mm (1.59 in) | 129.0 - 132.4 Ω |
