Keyless Entry / TPMS Receiver Removal and Installation




Keyless Entry / TPMS Receiver Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove left rear pillar trim. Service and Repair

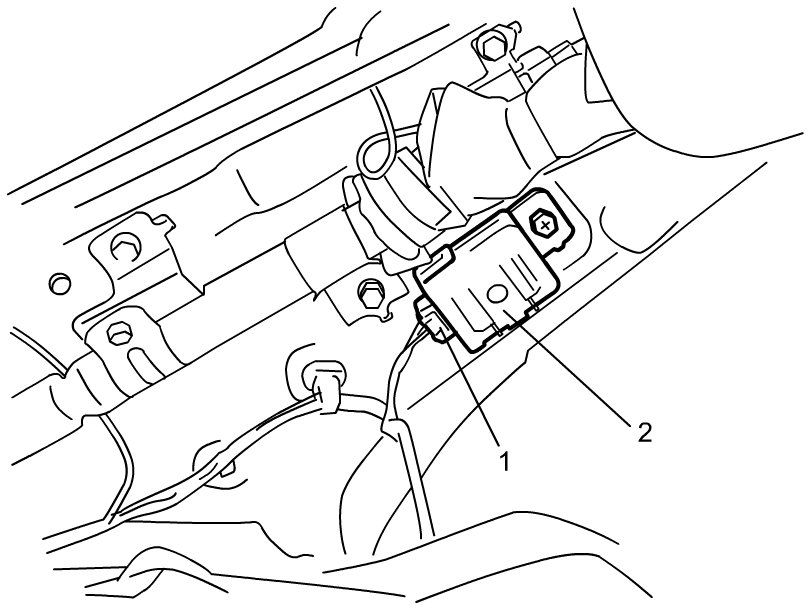

3) Disconnect connector (1), and then remove keyless entry / TPMS receiver (2)






Installation

Reverse removal procedure.
