Programming and Relearning

Seat Position Memory Initialization (If Equipped)

NOTE:

- Initialization is not completed if power supply of power seat control module is interrupted during initialization.
Repeat the same procedure from the beginning if power is interrupted during initialization.
- Buzzer sounds twice when initialization of all motors is completed.

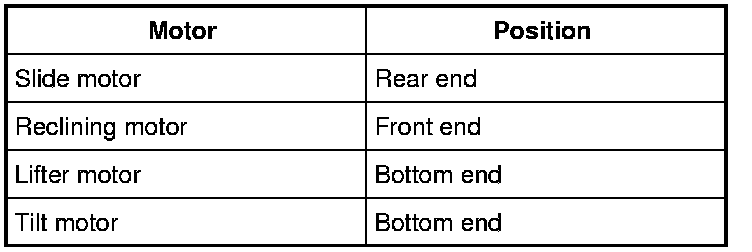

1) Operate each motor, one at a time, to move seat to position indicated in the following table and hold seat at each position for at least 5 seconds.
