ECT Sensor Removal and Installation

ECT Sensor Removal and Installation

Removal

1) Disconnect negative cable from battery.
2) Remove engine cover.
3) Drain coolant. Draining
4) Disconnect connector from ECT sensor.

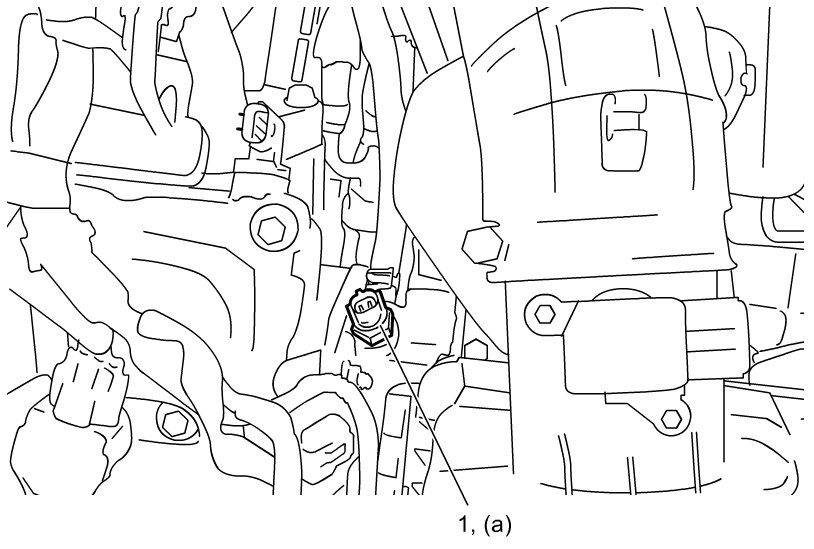

5) Remove ECT sensor (1) from water outlet cap.

Installation

Reverse removal procedure, noting the following points:

- Check O-ring for damage and replace if necessary.
- Tighten ECT sensor to specified torque.

Tightening torque
ECT sensor (a): 13 Nm (1.3 kgf-m, 9.5 lbf-ft)





- Connect connector to ECT sensor.
- Fill radiator with coolant. Refilling
- Check cooling system for leakage. Initial Inspection and Diagnostic Overview
