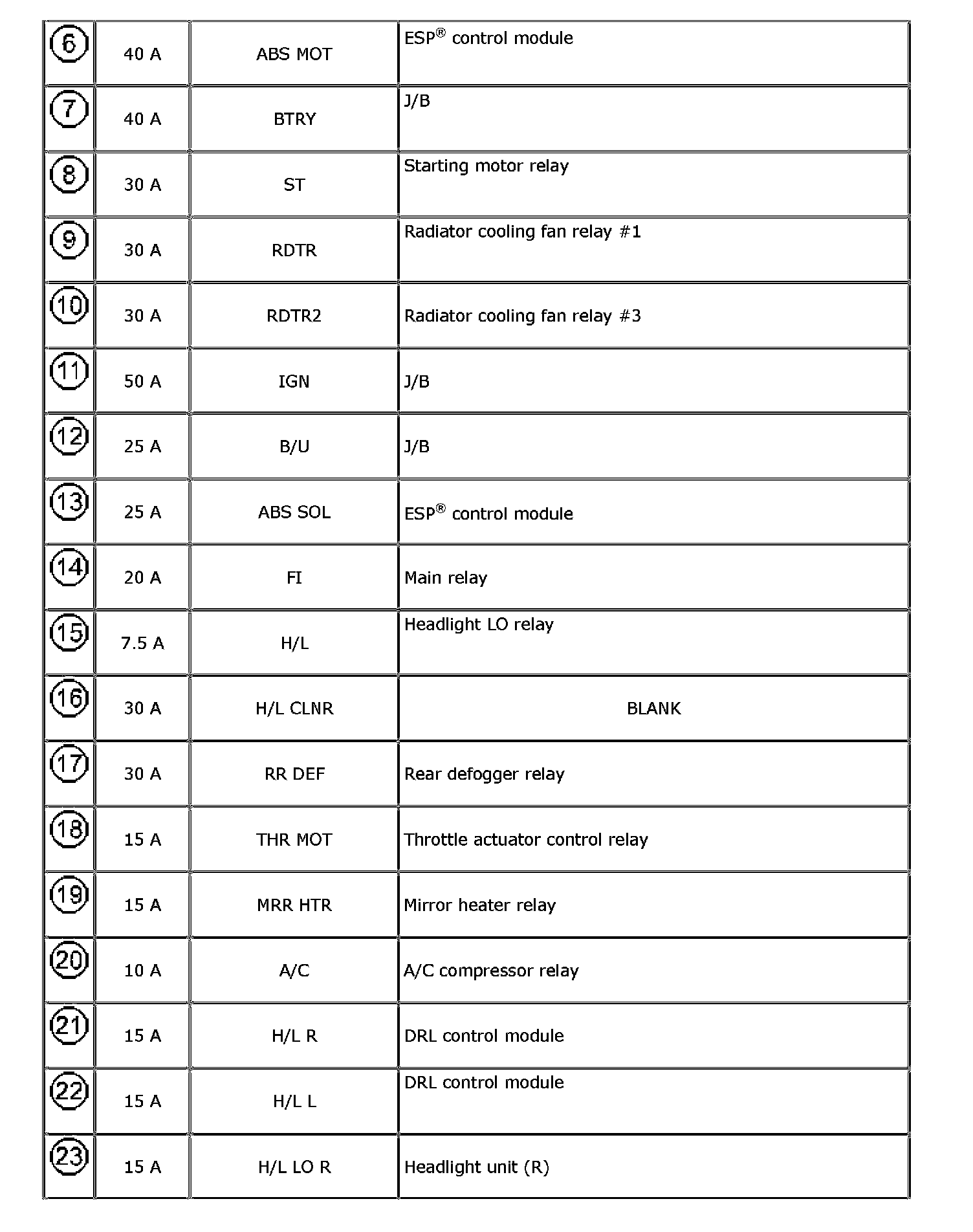

Fuses and the Protected Parts
Fuses and the Protected Parts

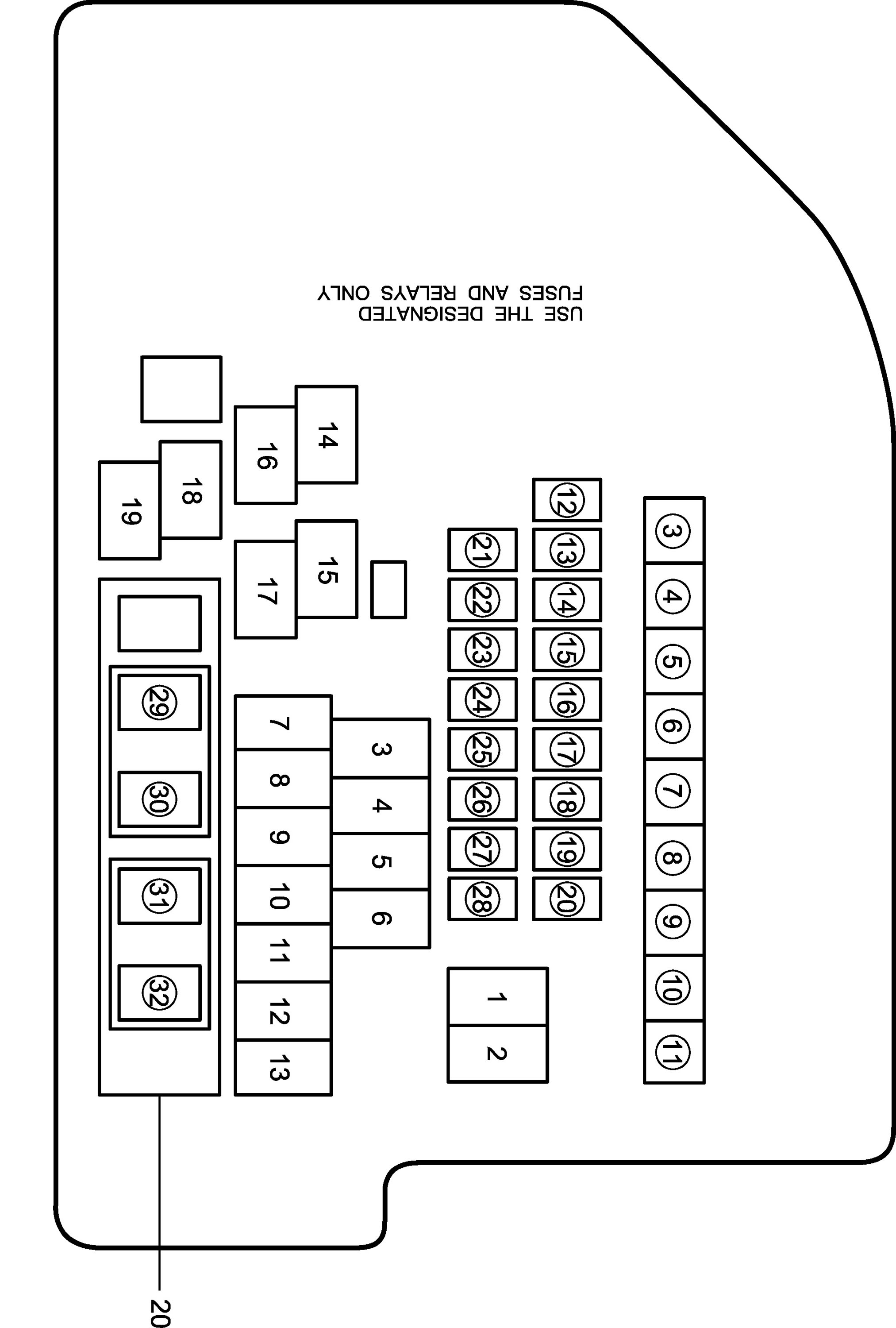

Individual Circuit Fuse Box No. 1, Power Integration (In Relay Box No. 1)
