Scan Tool Active Test Table

Scan Tool Active Test Table

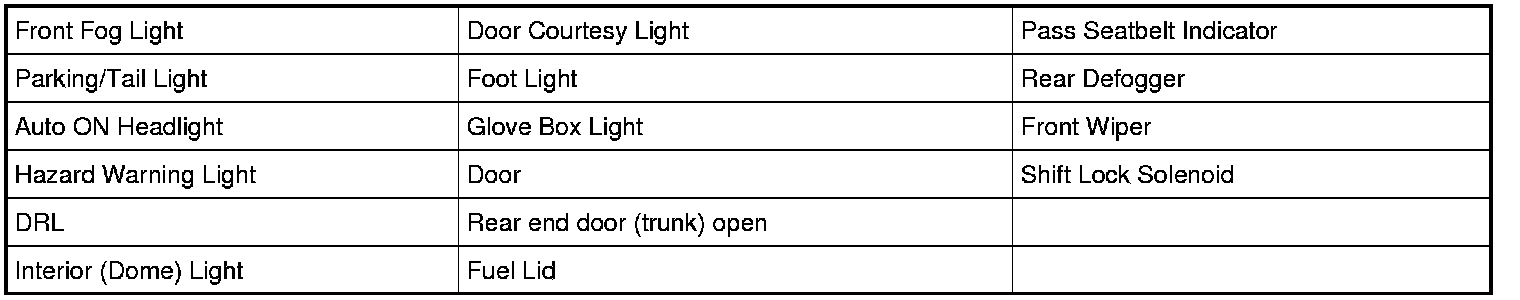

SUZUKI scan tool includes output test function which can force operation of the following actuators and relays of systems controlled by BCM. When a malfunction is found in system controlled by BCM, execute output test for easy judgment of whether the malfunction is on the input or output side of BCM. For detailed information on operation of SUZUKI scan tool, refer to "SUZUKI Scan Tool Operator's Manual".
