Scan Tool Data
Scan Tool Data
BCM
NOTE:
- If communication between SUZUKI scan tool and BCM is not possible, check related items according to the following points for recovery.
- SUZUKI scan tool and communication cable
- DLC power circuit and ground circuit
- CAN communication system malfunction ("Control Module Communication Bus Off" is detected in any control module)
- Refer to Scan Tool Testing and Procedures Scan Tool Data
for the parameters related to auto-on headlight system and rain-sensing wiper system.

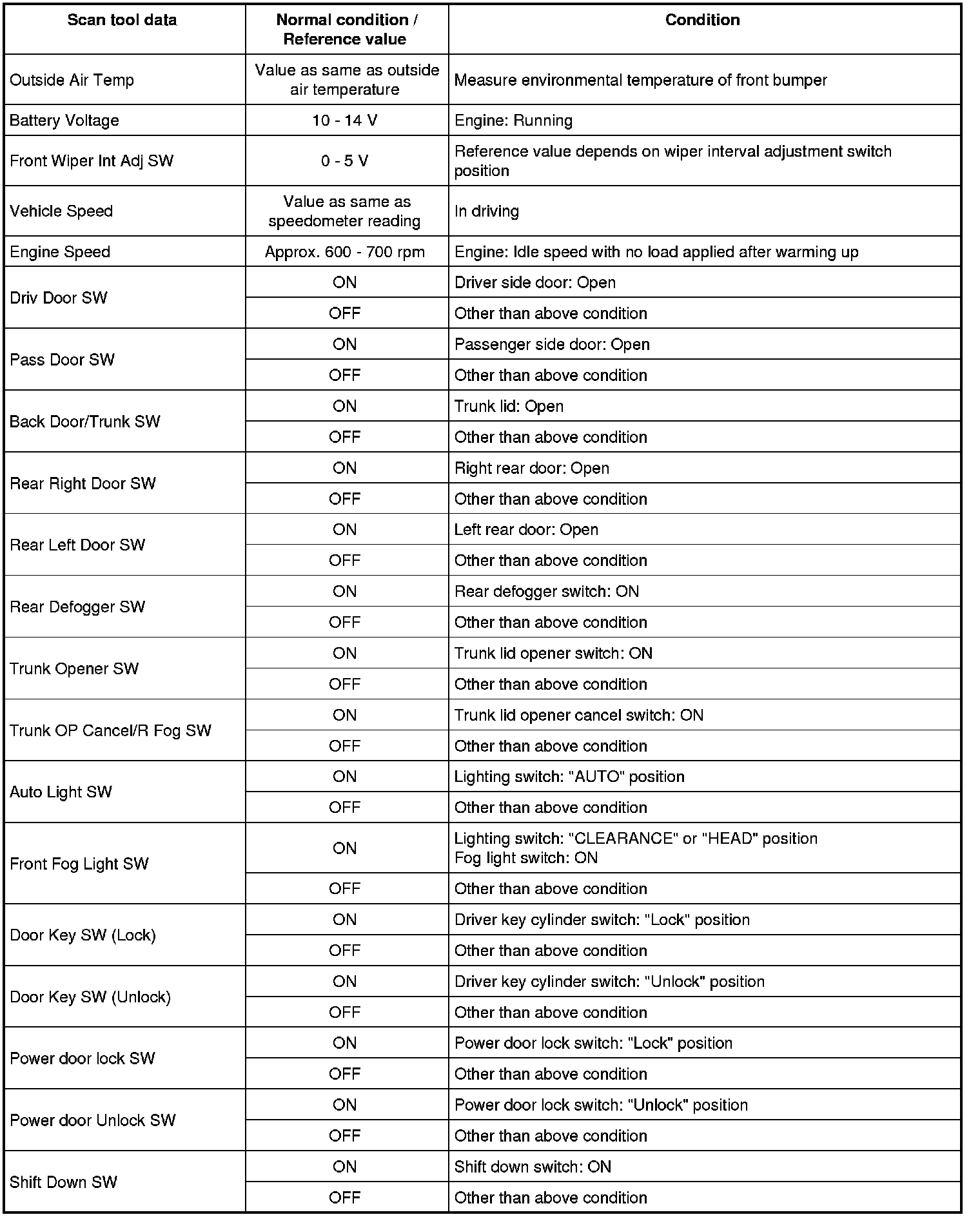

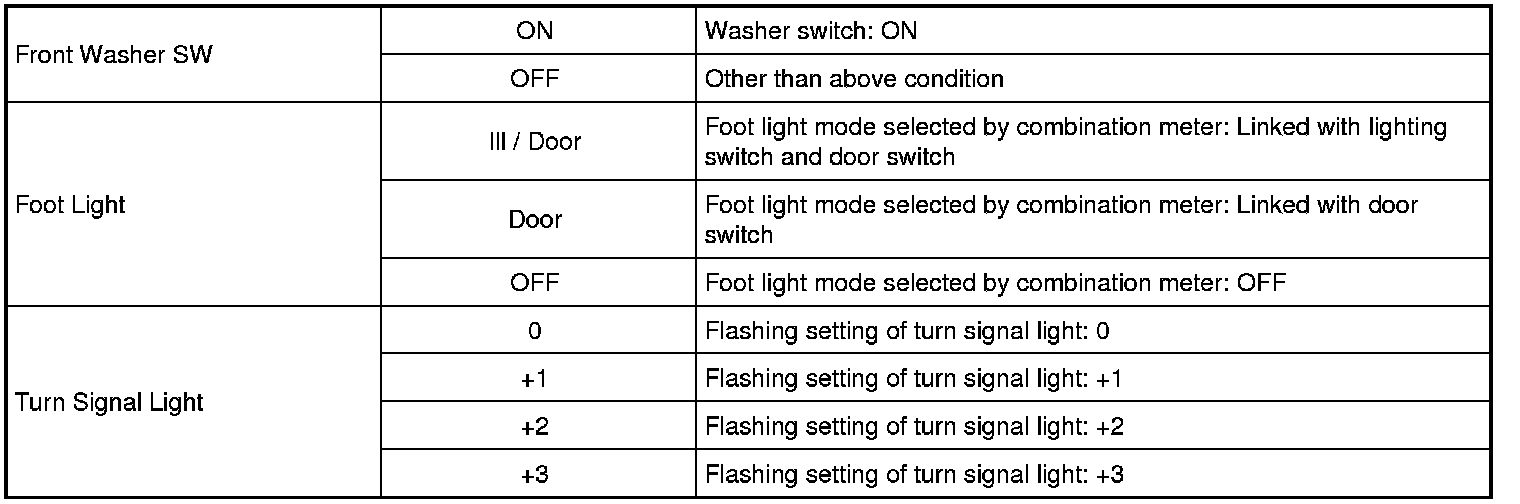

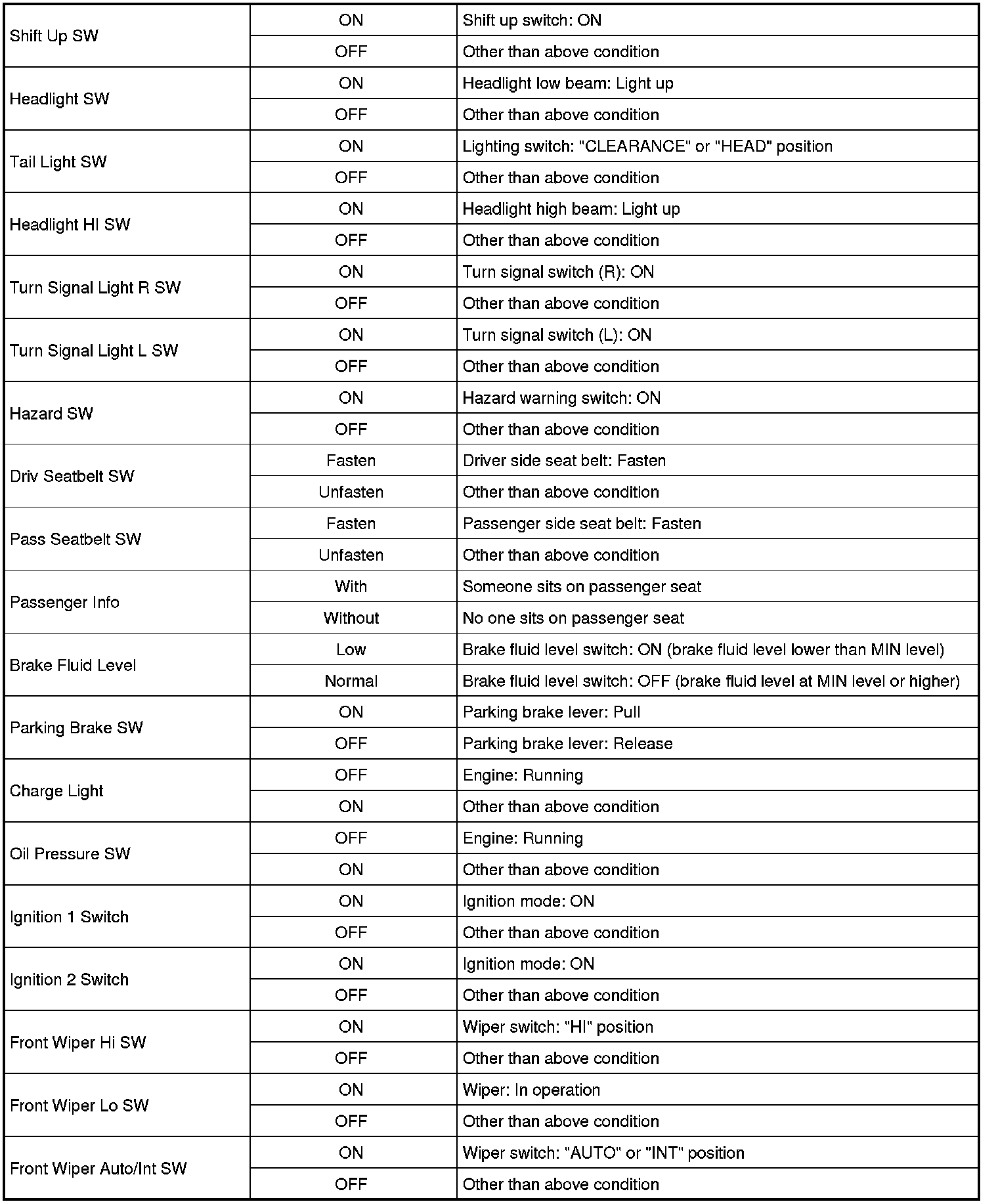

- For "Ignition mode" described in the following table, it means power supply mode in keyless push start system.
For more details of ignition mode, refer to Description of Keyless Engine Start Function Description of Keyless Engine Start Function.
