Body Control Module: Service and Repair

BCM Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Disable air bag system. Disabling Air Bag System
3) Remove glove box and passenger side instrument panel undercover. Removal and Replacement
4) Disconnect connectors and clamps from BCM and fuse box.

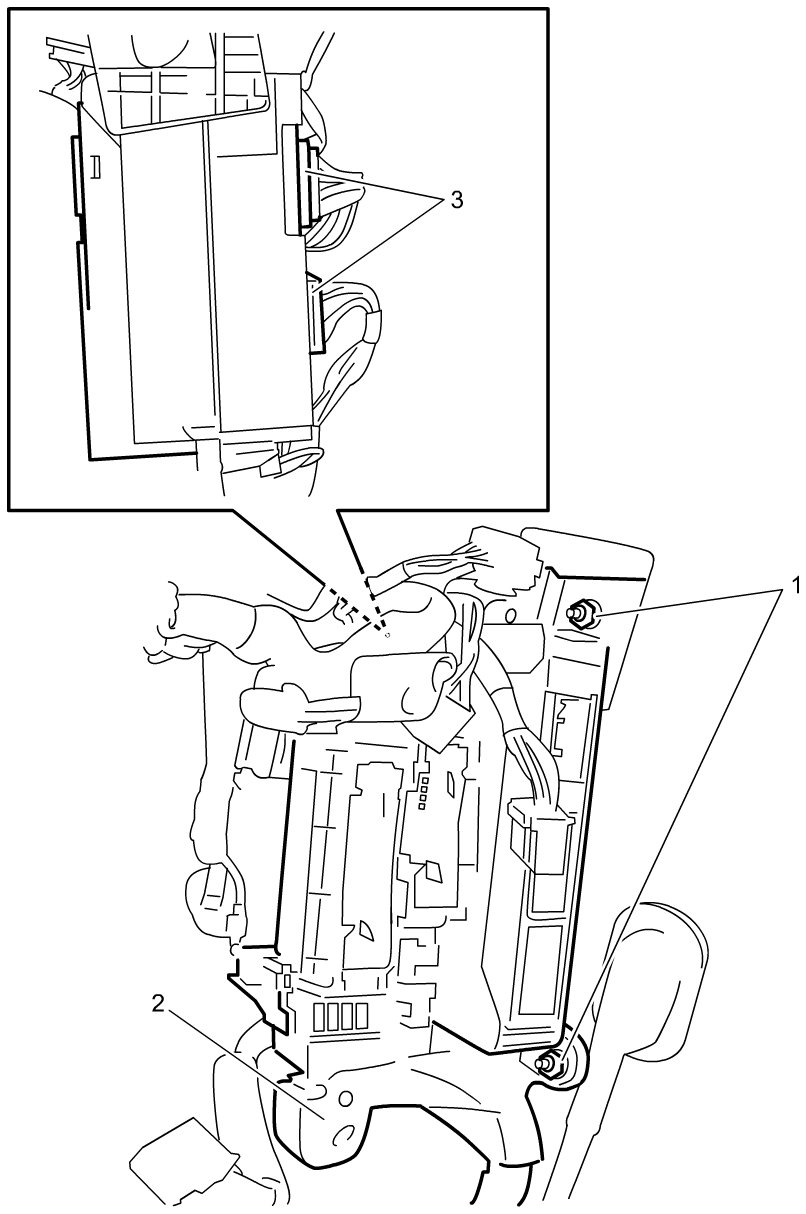

5) Remove nuts (1), and then detach fuse box (2).

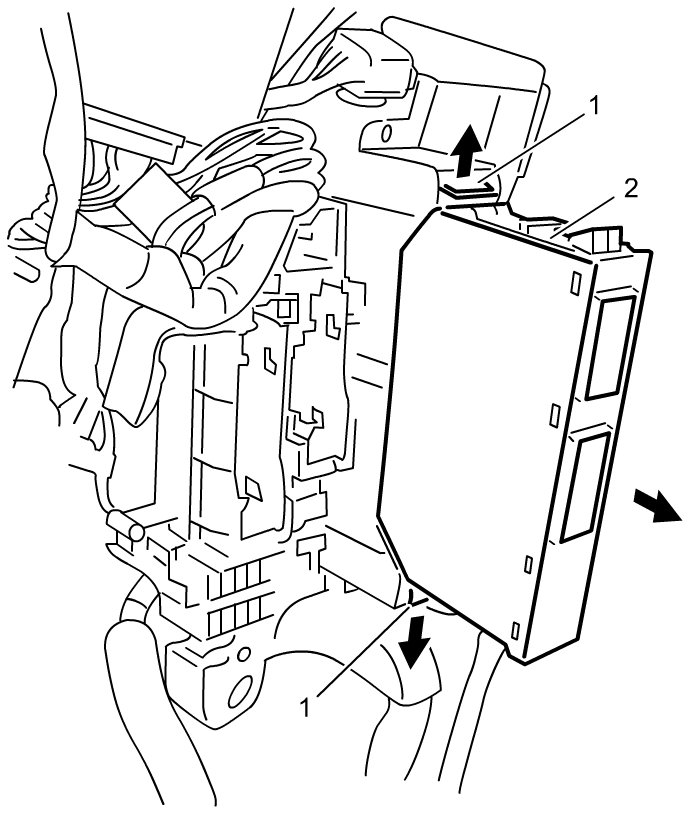

6) Release hooks (1) and remove BCM (2) from fuse box.






Installation

Reverse removal procedure noting the following point.

- Enable air bag system. Enabling Air Bag System
