Engine Compartment
Engine Compartment

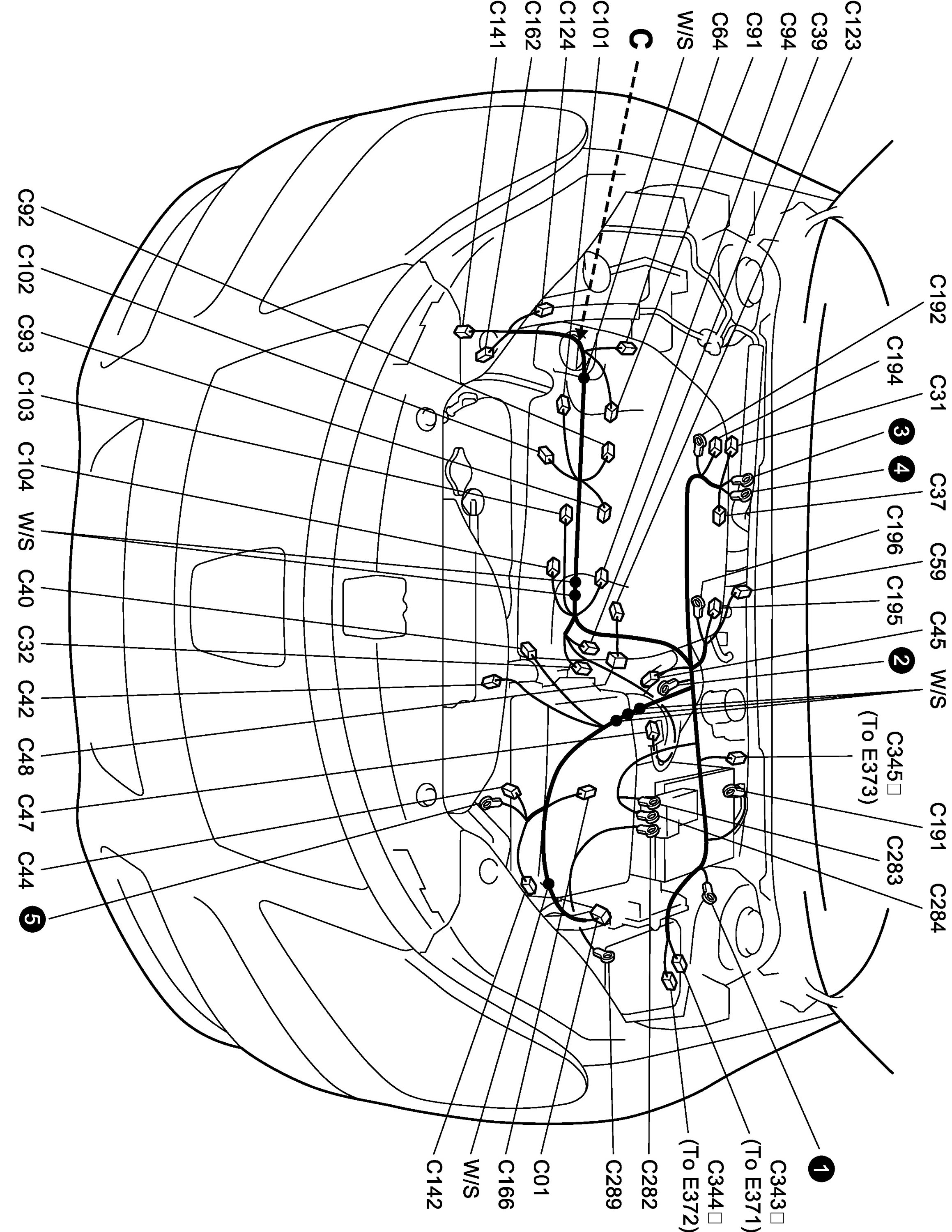

C: Engine Harness (M/T Model)

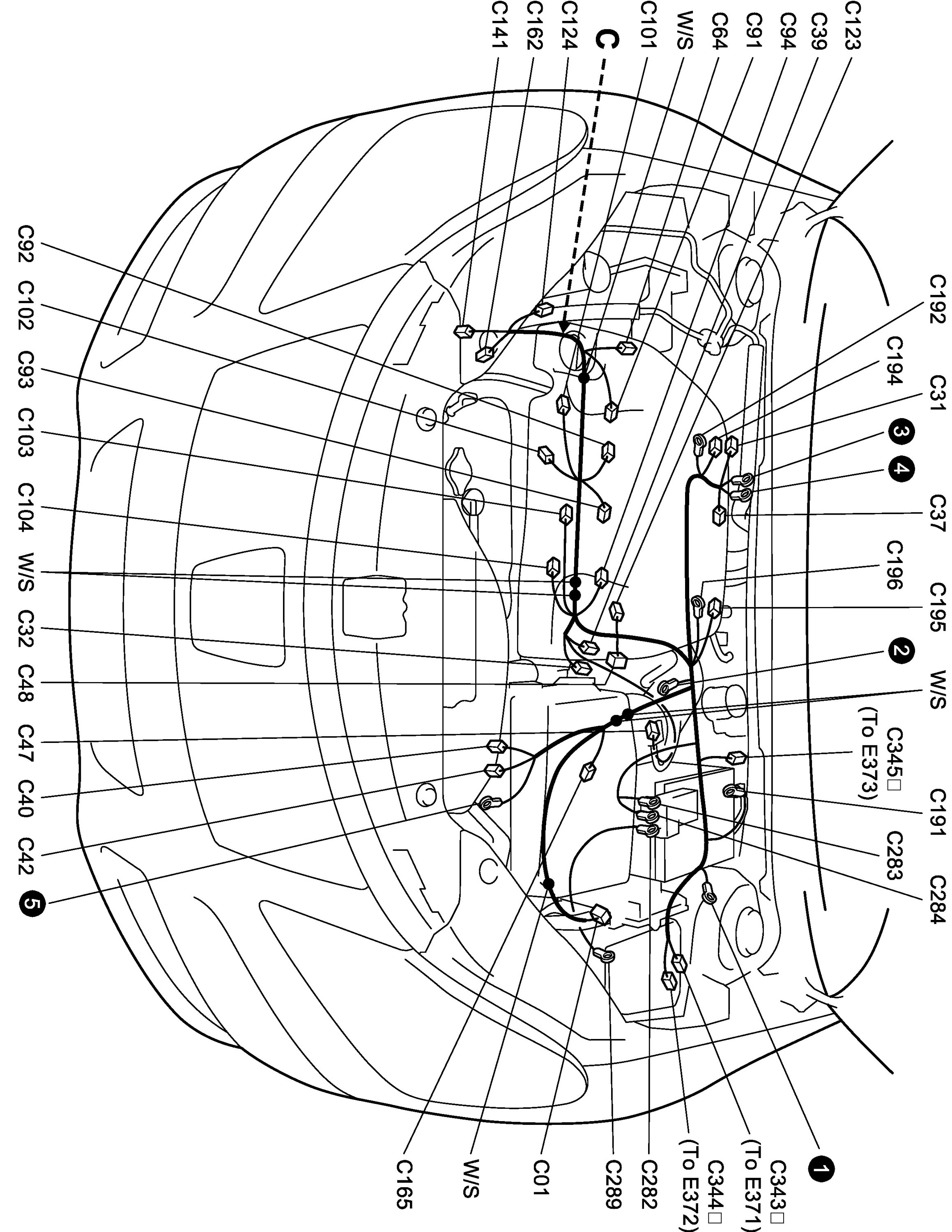

C: Engine Harness (CVT Model)

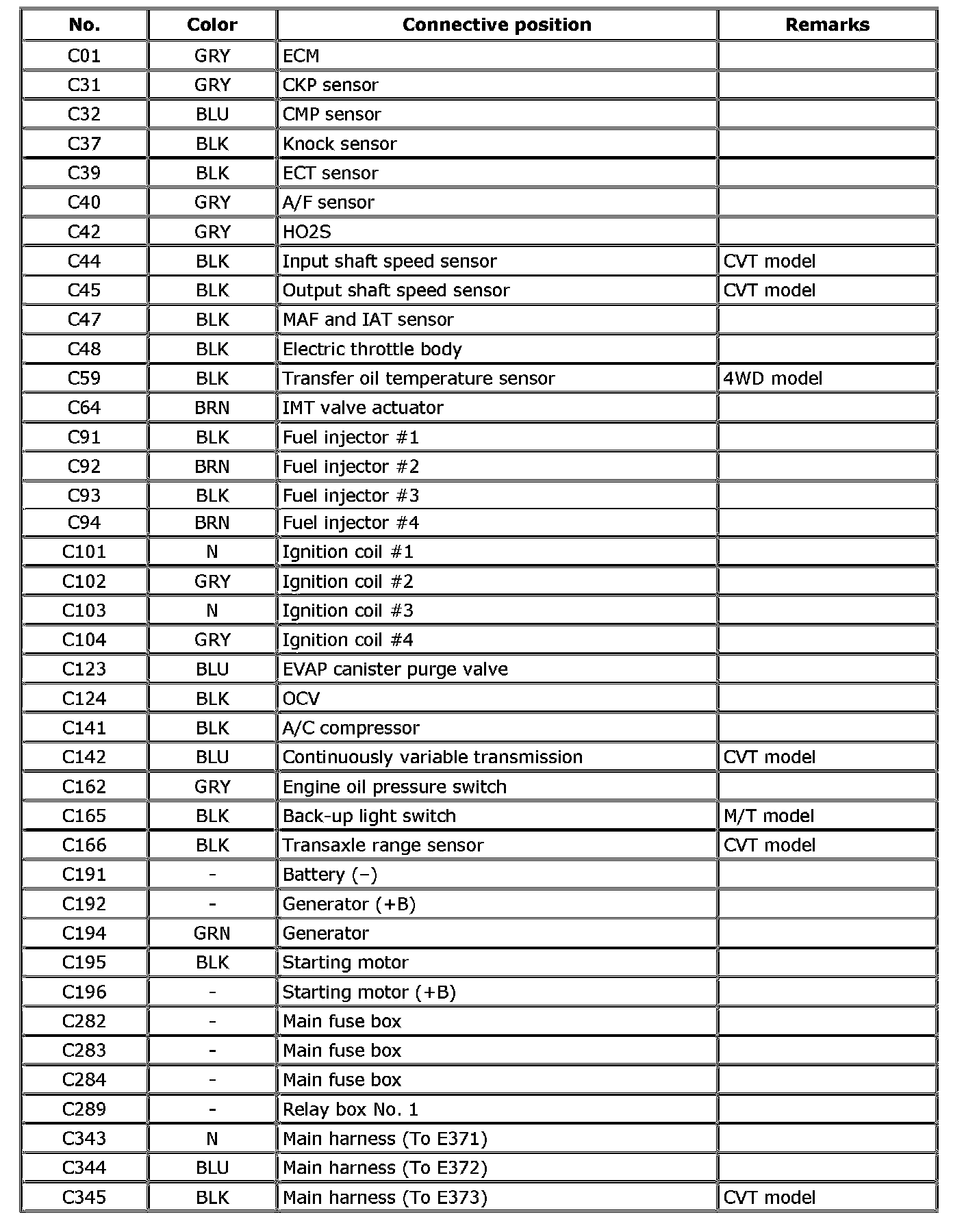

C: Engine Harness
