Engine Control Module
>>
Locations
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

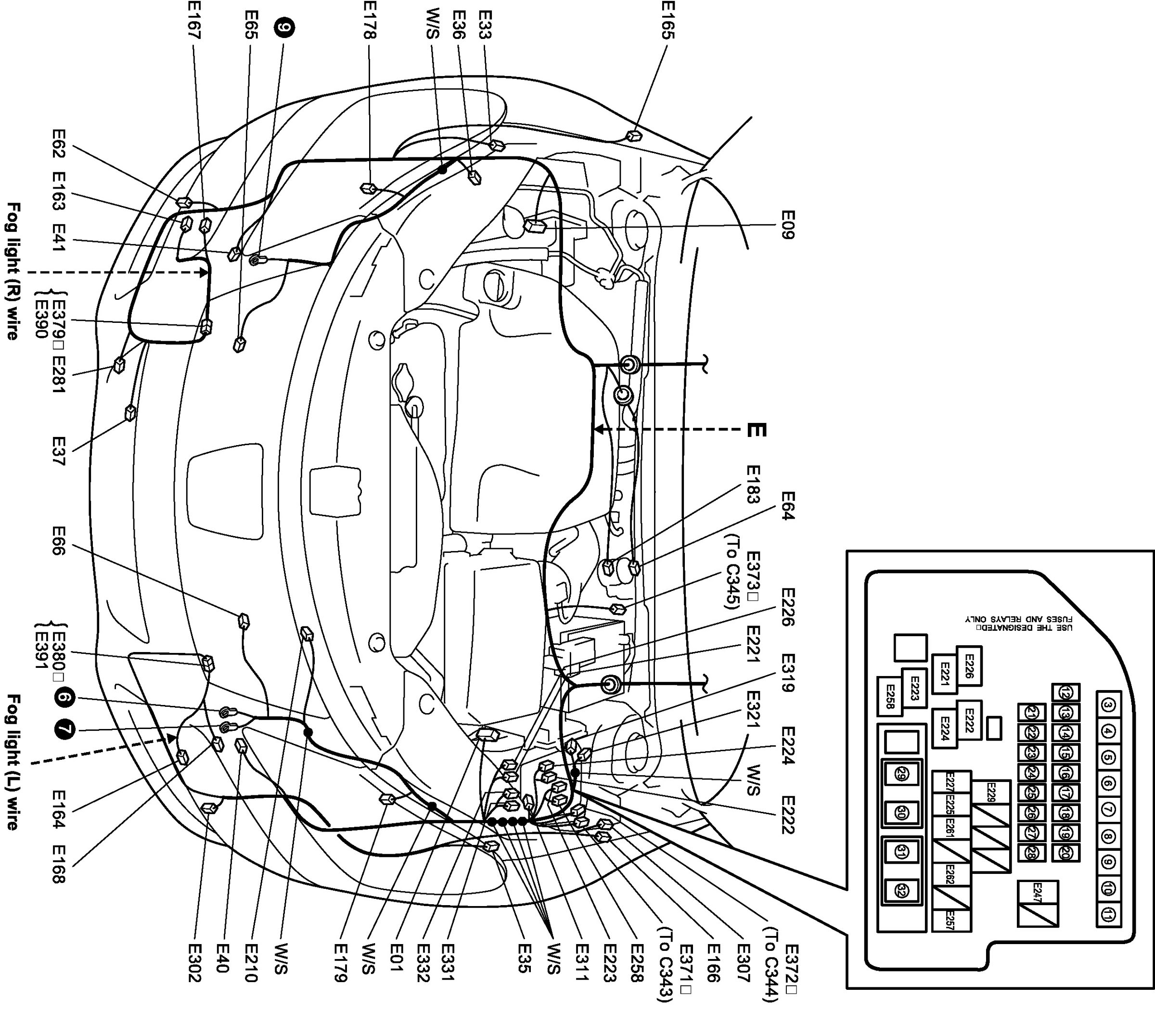

Engine Compartment
Engine Compartment

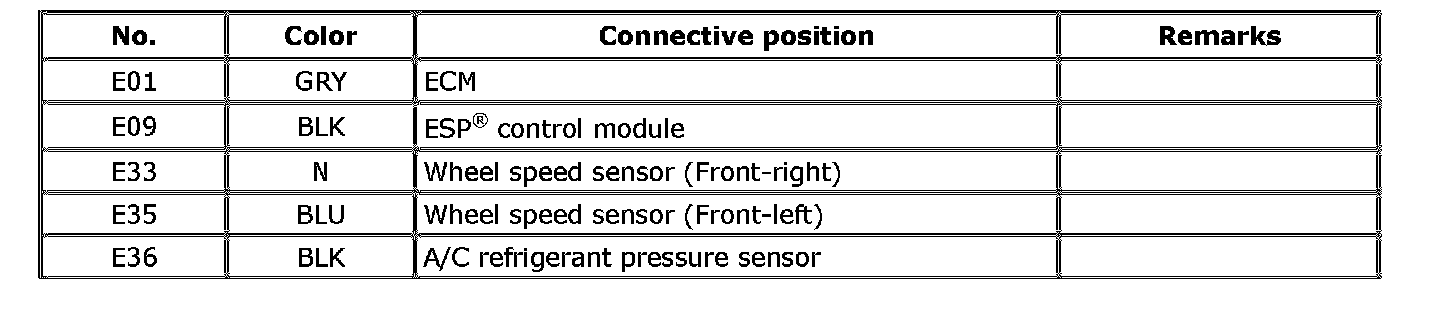

E: Main Harness, Fog Light Wire
E: Main Harness
