Mode 6 Data

OBD System Description

MODE $06 Data

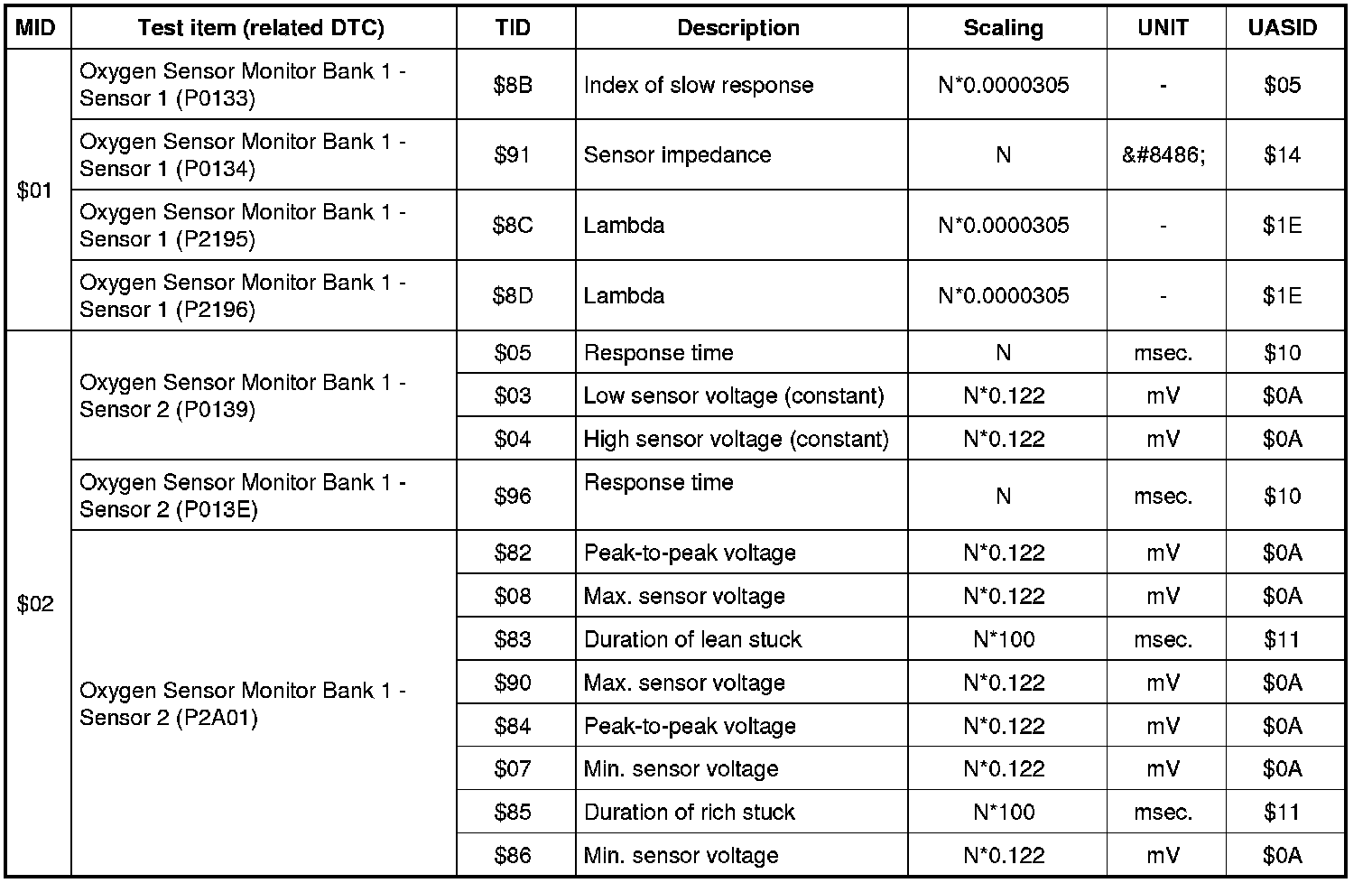

OBD System Description - A/F Sensor and HO2S Monitor

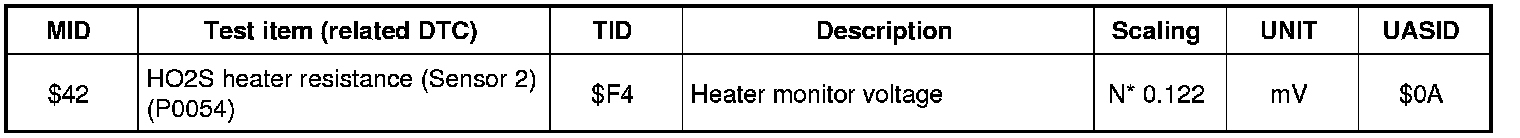

OBD System Description - A/F Sensor Heater and HO2S Heater Monitor

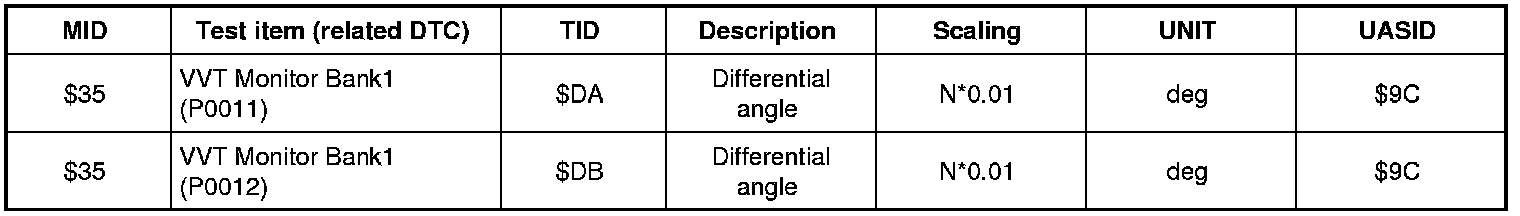

OBD System Description - Camshaft Position Control (VVT: Variable Valve Timing) Monitor

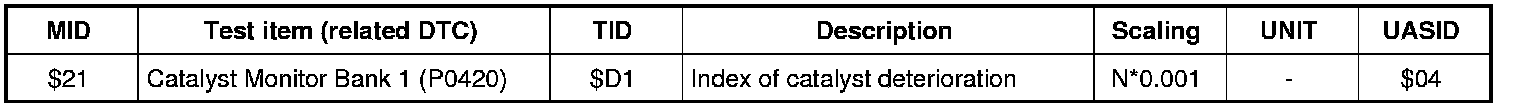

OBD System Description - Catalyst Monitor

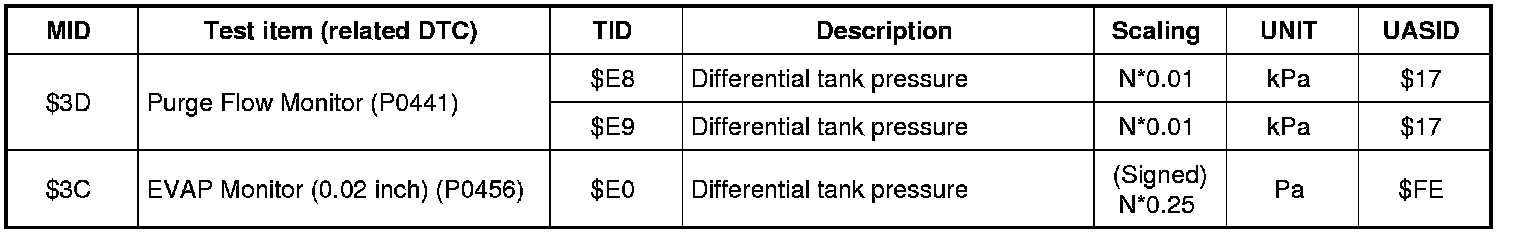

OBD System Description - EVAP Control System Monitor

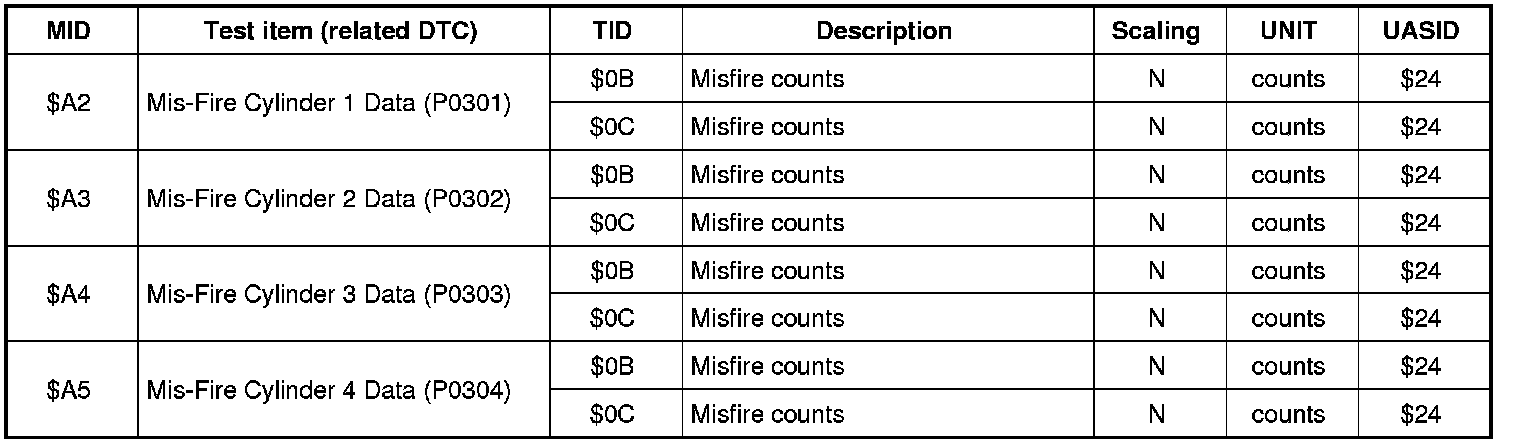

OBD System Description - Misfire Monitor
