Charging System




Charging System Specifications

Battery

Battery specification
Battery type: 24R - 700 (55 AH / 5HR) 12 V

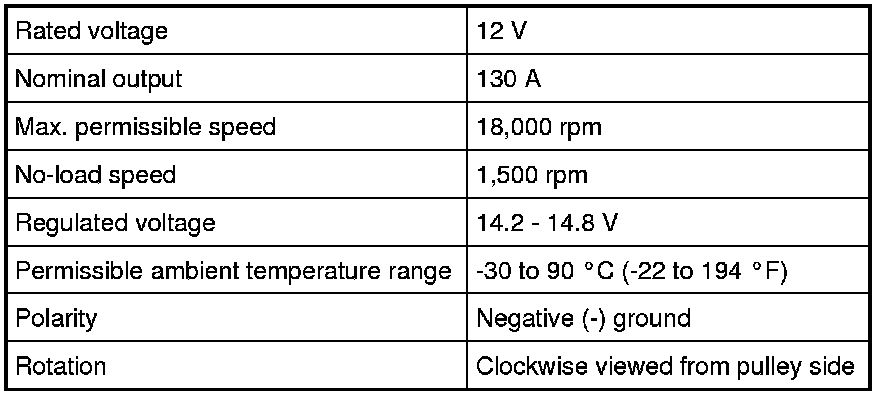

Generator
