Scan Tool Active Test Table

Scan Tool Active Test Table

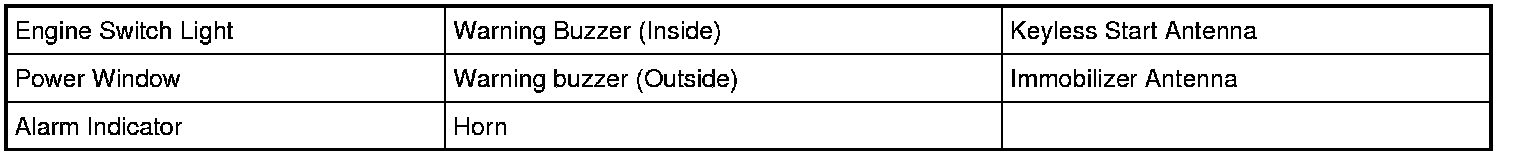

SUZUKI scan tool has output test function which can force operation of the following actuators and relays of the system controlled by keyless start control module. When a malfunction is found in the system controlled by keyless start control module, execute output test which enables easy judgment whether malfunction is on input side or output side of keyless start control module. For detailed information on operation of SUZUKI scan tool, refer to "SUZUKI Scan Tool Operator's Manual".
