Keyless Start Antenna: Service and Repair




Antennas and Request Switches Removal and Installation

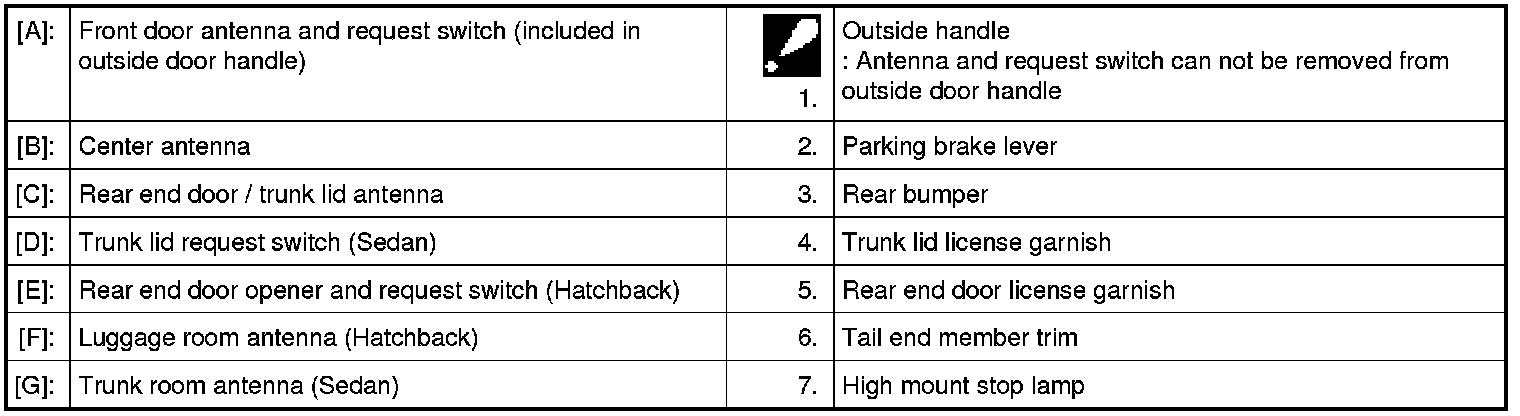

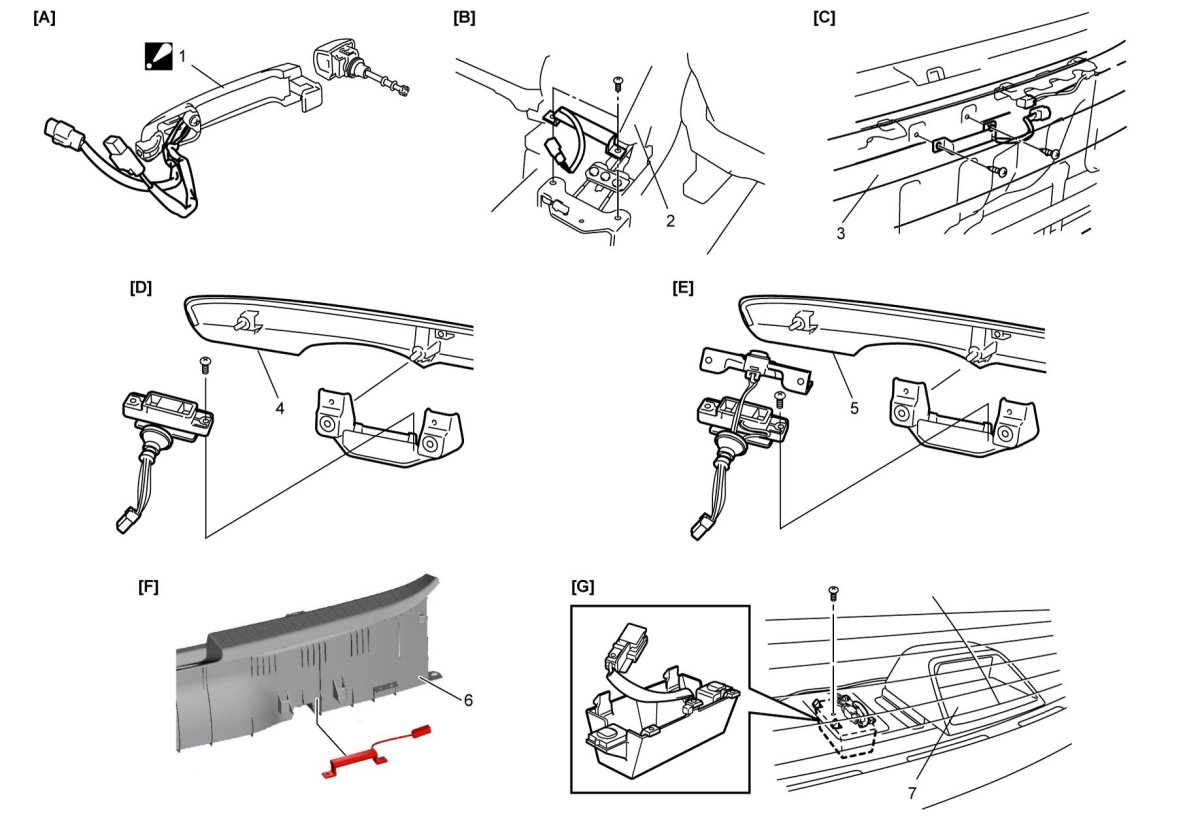

Remove and install antennas and request switches referring to the following figures.
