Engine Compartment

Engine Compartment

A: Battery Cable / C: Engine Harness





C: Engine Harness

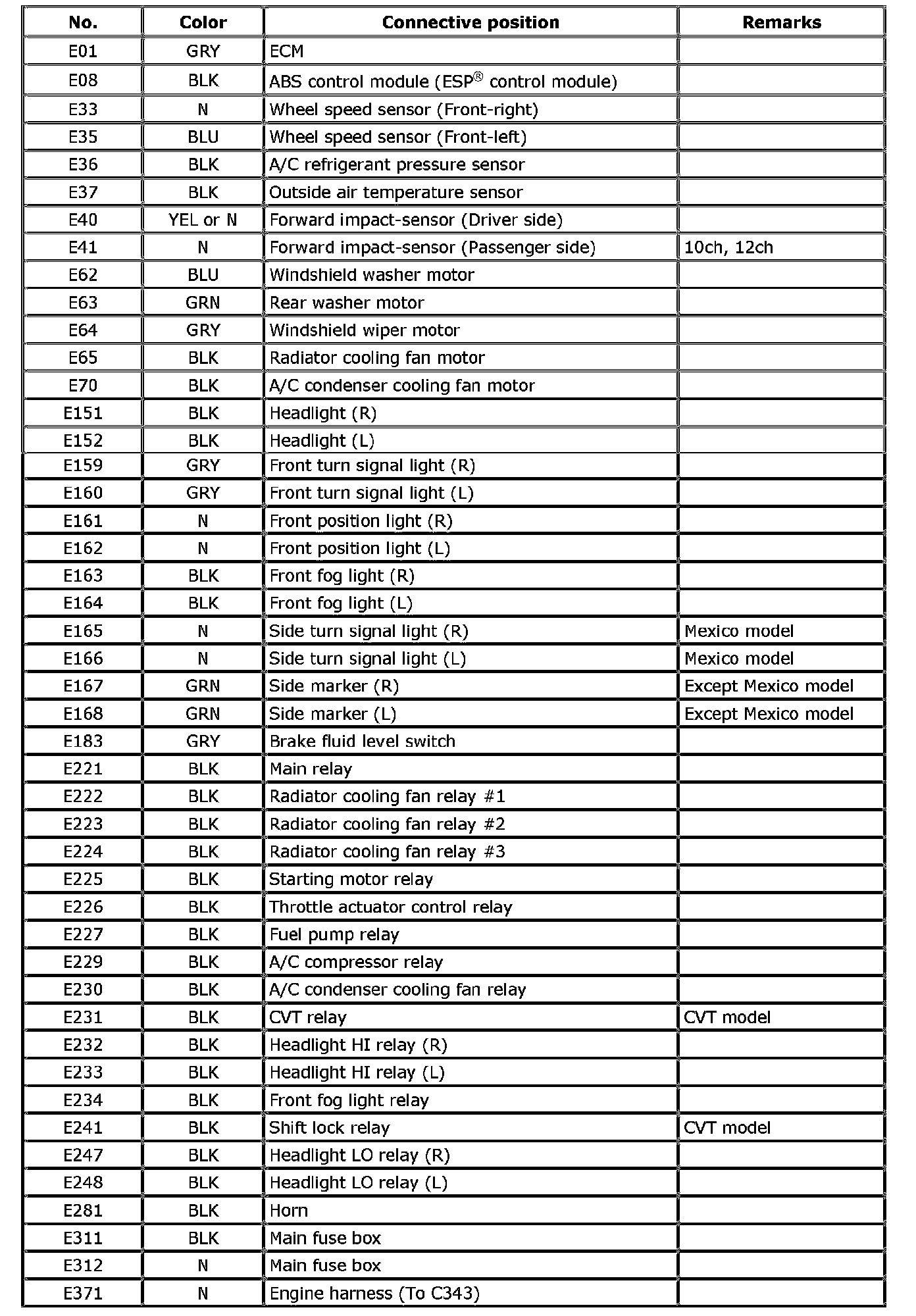

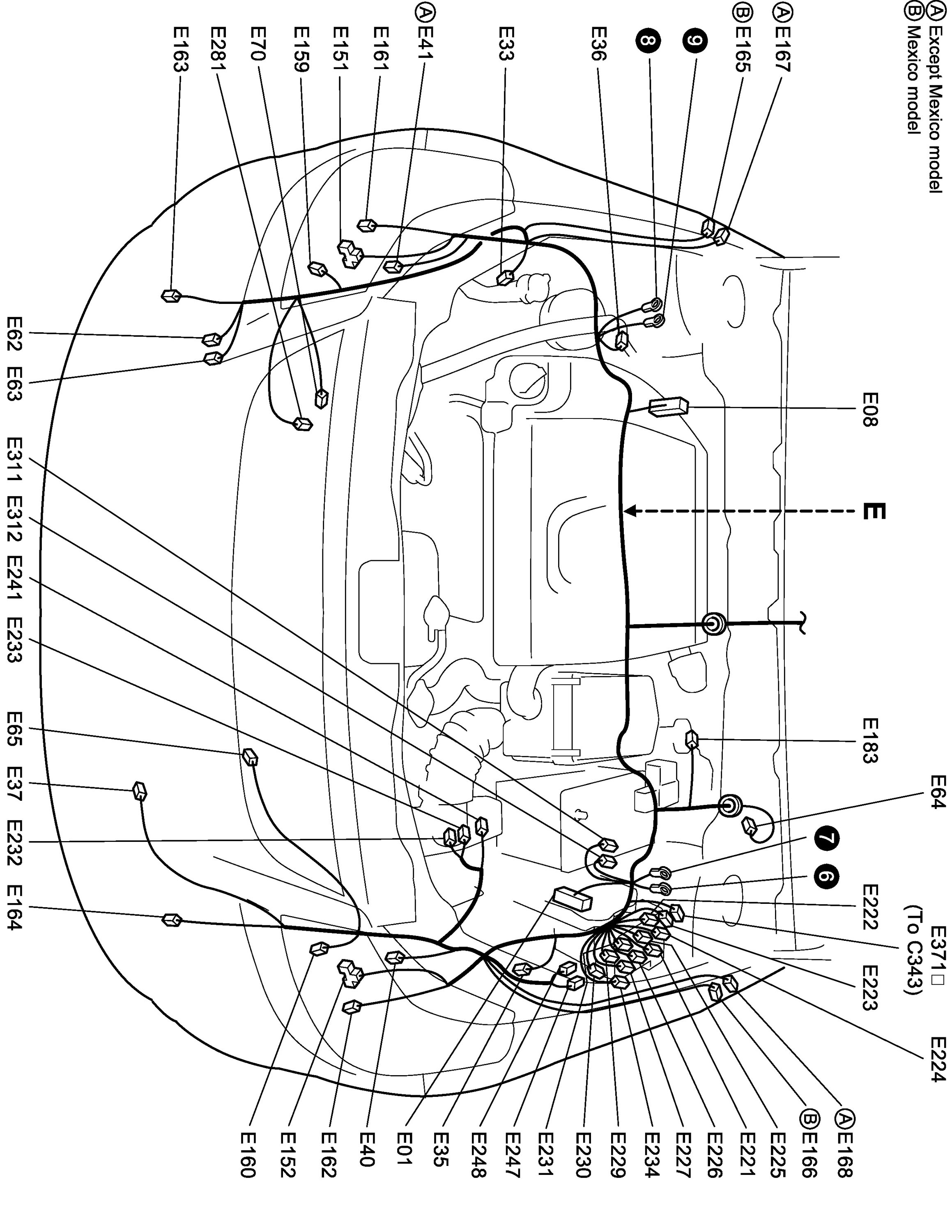

E: Main Harness





E: Main Harness
