Firing Order: Specifications

Firing Order

Ignition order 1 - 3 - 4 - 2

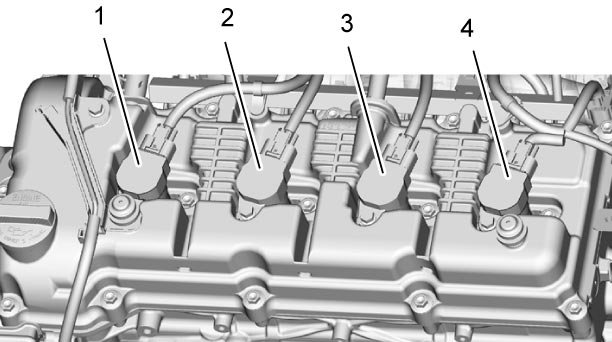

Precautions for Identification of Cylinder

Four cylinders of engine are identified by number; No.1 (1), No.2 (2), No.3 (3) and No.4 (4) counted from crankshaft pulley side to flywheel side.
