Fuel Level Sensor Inspection

Reference: FUEL LEVEL SENSOR REMOVAL AND INSTALLATION

• Check that resistance between terminals "a" and "b" of fuel level sensor changes with change of float position.
• Check resistance between terminals "a" and "b" at each float position in the following.

  If the measured value is out of specification, replace.

  Fuel level sensor specifications

  FUEL LEVEL SENSOR SPECIFICATIONS



  Float Position		Resistance (Ω)
  Full Upper "c"	204 mm (8.03 in.)	40 ± 2
  Full Lower "d"	32 mm (1.26 in.)	280 ± 3.3

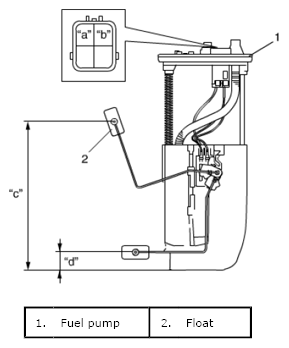

  Fig 1: Inspecting Fuel Level Sensor

  Courtesy of SUZUKI OF AMERICA CORP.
