Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

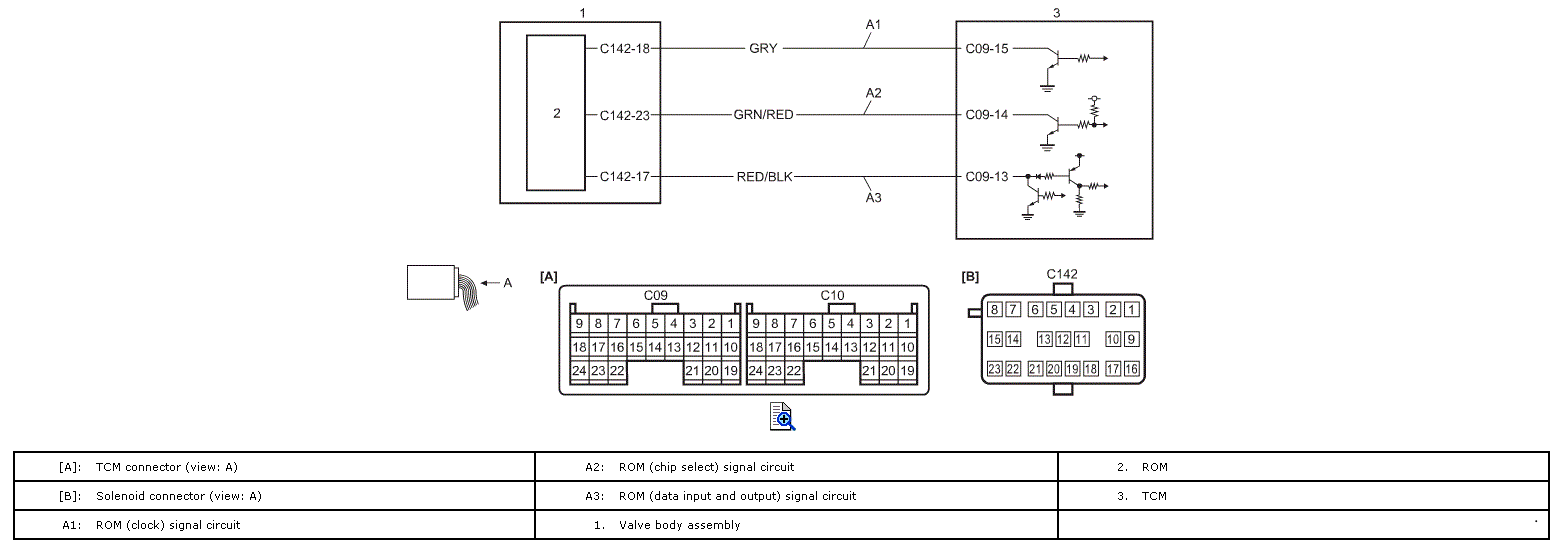

Fig 1: Detecting Condition And Trouble Area Circuit Diagram
G00540872Courtesy of SUZUKI OF AMERICA CORP.
