Steering
>>
Electronic Steering
>>
Power Assisted Steering System - Electric
>>
Diagnostic Information and Procedures
>>
DTC C1153: P/S Control Module Power Supply Circuit
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

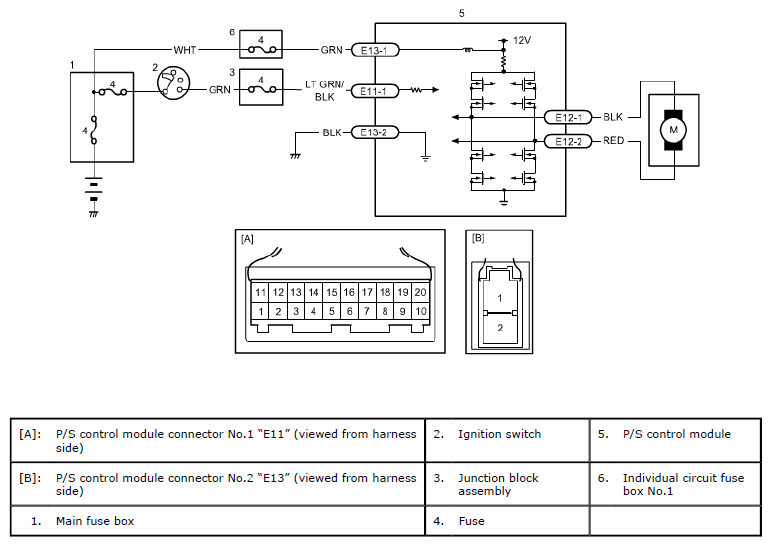

Fig 1: P/S Control Module Power Supply Circuit Diagram
