Terminal Arrangement of ESP® Control Module Connector (Viewed from Terminal Side)

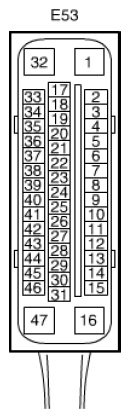

Fig 1: ESP® Control Module Connector Terminal Arrangement
G08895809Courtesy of SUZUKI OF AMERICA CORP.
Terminal Circuit
E53-1 Solenoid valve power supply driver (transistor)
E53-2 Right-front wheel speed sensor (-)
E53-3 Right-front wheel speed sensor (+)
E53-4 Brake light relay drive circuit
E53-5 Left-rear wheel speed sensor (+)
E53-6 Left-rear wheel speed sensor (-)
E53-7 -
E53-8 Hill descent control switch signal
E53-9 -
E53-10 -
E53-11 Right-rear wheel speed sensor (-)
E53-12 Right-rear wheel speed sensor (+)
E53-13 -
E53-14 Left-front wheel speed sensor (+)
E53-15 Left-front wheel speed sensor (-)
E53-16 Ground
E53-17 -
E53-18 CAN communication line (high) for yaw rate/G sensor assembly
E53-19 CAN communication line (low) for yaw rate/G sensor assembly
E53-20 -
E53-21 -
E53-22 Power source for yaw rate/G sensor assembly
E53-23 -
E53-24 ESP® OFF switch signal
E53-25 -
E53-26 -
E53-27 -
E53-28 -
E53-29 Ground for yaw rate/G sensor assembly
E53-30 -
E53-31 -
E53-32 Pump motor driver (transistor)
E53-33 -
E53-34 -
E53-35 Brake light relay power supply circuit
E53-36 -
E53-37 -
E53-38 -
E53-39 Ignition switch
E53-40 -
E53-41 -
E53-42 CAN communication line (high)
E53-43 CAN communication line (high) for ECM
E53-44 CAN communication line (low) for ECM
E53-45 CAN communication line (low)
E53-46 -
E53-47 Ground
