Ignition Switch Cylinder Assembly Removal and Installation (without Keyless Start System): Installation

Install ignition switch cylinder assembly as follows.
1. Turn ignition key to "ACC" position.
2. In this state, push ignition switch cylinder assembly into steering lock assembly till it clicks.
(Immobilizer model)
Install immobilizer control module (ICM) referring to IMMOBILIZER CONTROL MODULE (ICM) REMOVAL AND INSTALLATION .
Install upper and lower cover and screws (1).
NOTE: Lead wires will be damaged if they get pinched when you install the covers. Make sure that there are no wires caught between the covers before securing the covers.

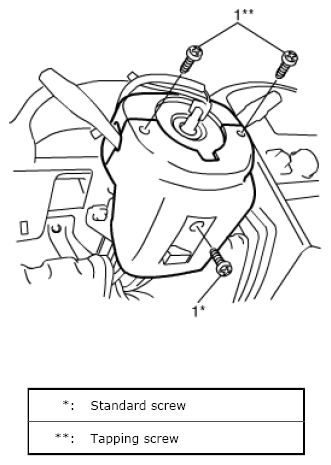

Fig 1: Identifying Steering Column Upper And Lower Cover And Screws
Courtesy of SUZUKI OF AMERICA CORP.
Enabling air bag system referring to ENABLING AIR BAG SYSTEM:Advanced Air Bag or ENABLING AIR BAG SYSTEM:Except Advanced Air Bag .
(Immobilizer model)
If ignition switch cylinder assembly (that is ignition key) has replaced, register ignition key transponder code to ECM referring to REGISTRATION OF THE IGNITION KEY .
