Rearview Image Signal

TERMINAL CHANNEL REFERENCE CHART

Channel Probe Terminal No.
1 + G232-3
- G232-5

Measurement condition

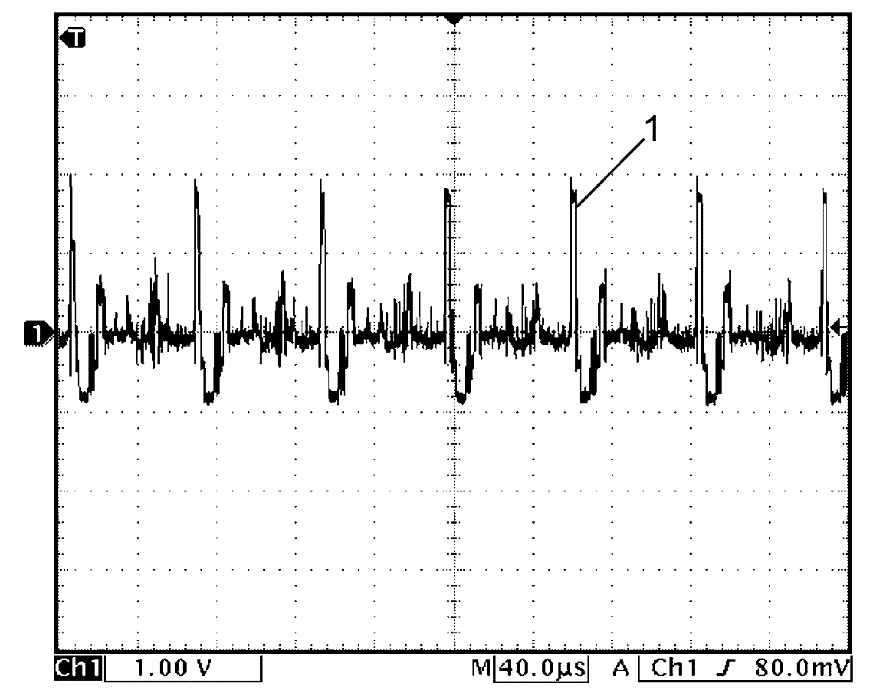

Fig 1: Identifying Rearview Signal Waveform
G00532151Courtesy of SUZUKI OF AMERICA CORP.
