Rain-Sensing Wiper System Input/Output Block Diagram

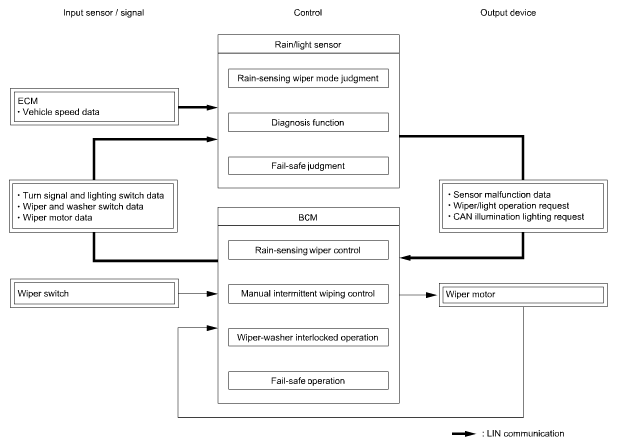

Fig 1: Rain-Sensing Wiper System Input/Output Block Diagram
G06529075Courtesy of SUZUKI OF AMERICA CORP.
