Kizashi Base, Automatic CVT Trans
>>
Repair and Diagnosis (Single Page)
>>
Drivelines & Axles
>>
Differentials & Drive Axles
>>
Differential
>>
Diagnostic Information and Procedures
>>
DTC C1252: Coupling Assembly Open/DTC C1253: Coupling Assembly Short
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

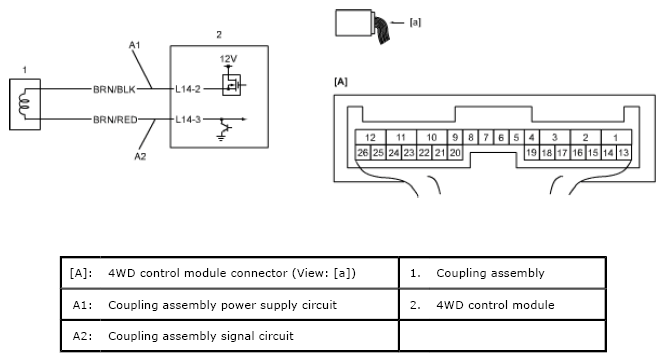

Fig 1: Coupling Assembly Circuit Diagram
