EVAP Canister / EVAP Leak Check Module Assembly Removal and Installation: Installation

Reverse removal procedure noting the following points:

• Tighten EVAP canister bolts to specified torque, see EVAP SYSTEM COMPONENTS .
• When installing hoses, do not apply soap, grease or oil to insertion part.
• Install purge pipe (1) to EVAP canister as shown in figure.

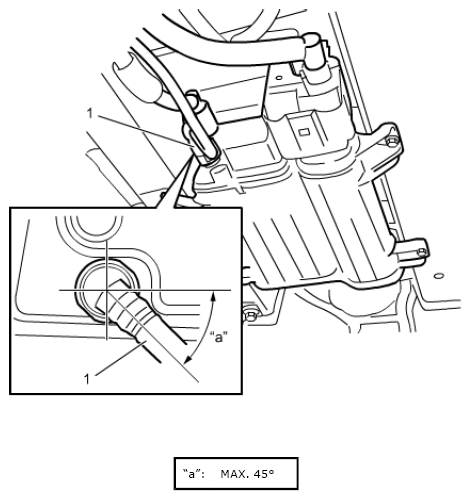

  Fig 1: Installing Purge Pipe To EVAP Canister

  Courtesy of SUZUKI OF AMERICA CORP.
• Before connecting quick joint, clean inside of quick joint and outside of pipe.
• For quick joint, push joint into pipe till joint lock clicks and then check that quick joint does not disengage by pulling quick joint in arrow direction.

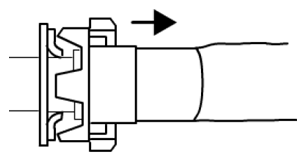

  Fig 2: Properly Connecting Quick Joint

  Courtesy of SUZUKI OF AMERICA CORP.
