CAN Communication Signal

CAN Communication signal (High) (1):

CAN COMMUNICATION SIGNAL (HIGH) REFERENCE

Channel	Probe	Terminal No.
1	+	G20-19
1	-	G20-14

CAN Communication signal (Low) (2):

CAN COMMUNICATION SIGNAL (LOW) REFERENCE

Channel	Probe	Terminal No.
2	+	G20-39
2	-	G20-14

Measurement condition

Ignition mode of keyless push start system: "ON"

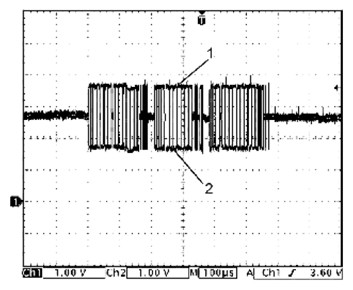

Fig 1: Identifying CAN High/Low Communication Signal Waveform
Courtesy of SUZUKI OF AMERICA CORP.
