Transmission Control Module (TCM) Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove driver side instrument panel undercover, see INSTRUMENT PANEL REMOVAL AND INSTALLATION .
  3. Disconnect connectors (2) from TCM (1).
  4. Remove TCM by removing nuts (3).

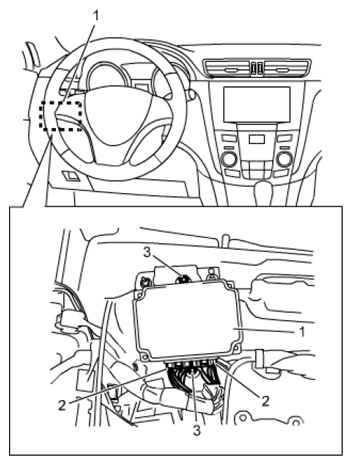

    Fig 1: Identifying TCM And Connectors
    G06527862Courtesy of SUZUKI OF AMERICA CORP.
