Circuit Diagram

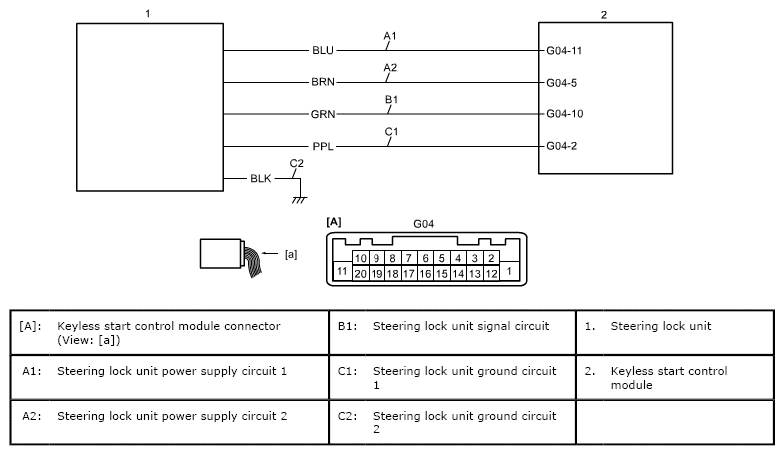

Fig 1: Steering Lock Unit Communication Error Circuit Diagram
G06527936Courtesy of SUZUKI OF AMERICA CORP.
