Magnetic Switch: Notes

Check that plunger quickly returns to its original position when plunger is pushed in with a finger and released. If it does not, replace magnetic switch.

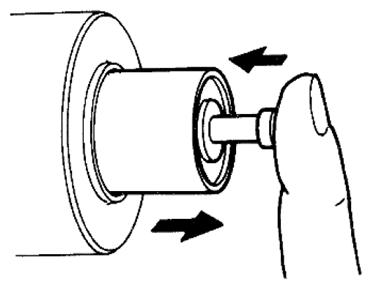

Fig 1: Pushing Magnetic Switch Plunger
G06528284Courtesy of SUZUKI OF AMERICA CORP.
