Power Window System Initialization/Reset (Front Windows Only): Initialization
- Push engine switch to change ignition mode of keyless start system to "ON" (with vehicle stopped).
- Press down and hold power window switch until window glass reaches its fully open position and continue holding it down for additional 2 or more seconds.

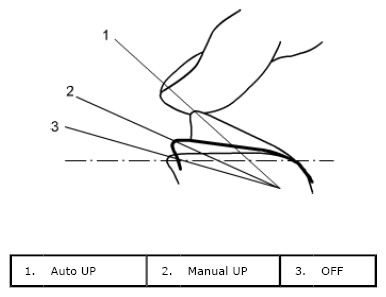

- Pull up and hold power window switch in AUTO position until window glass reaches its fully closed position and continue holding it up for additional 2 or more seconds.
Courtesy of SUZUKI OF AMERICA CORP.
- Perform Auto DOWN and Auto UP operations to check that door glass can be opened and closed fully. Repeat procedure from Step 1) if Auto DOWN or Auto UP function does not work.
- Check anti-pinching function, see INSPECTION OF POWER WINDOW ANTI-PINCHING FUNCTION .
