Power Seat Control System Input/Output Block Diagram (If Equipped)

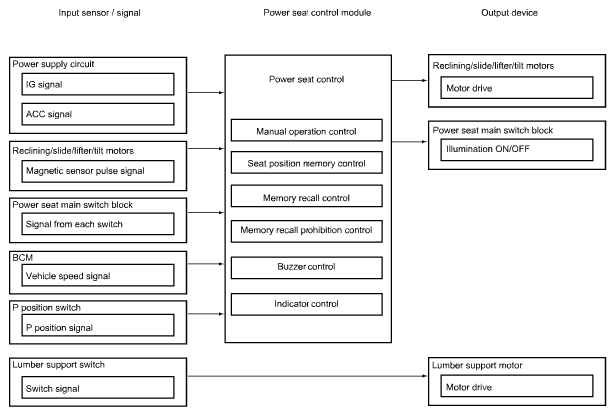

Fig 1: Power Seat Control System Input / Output Block Diagram
G06530133Courtesy of SUZUKI OF AMERICA CORP.
