Section 72 (Keyless Start System)
>>
Component Location
>>
Keyless Start System Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Keyless Start System Component Location
WARNING:
This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

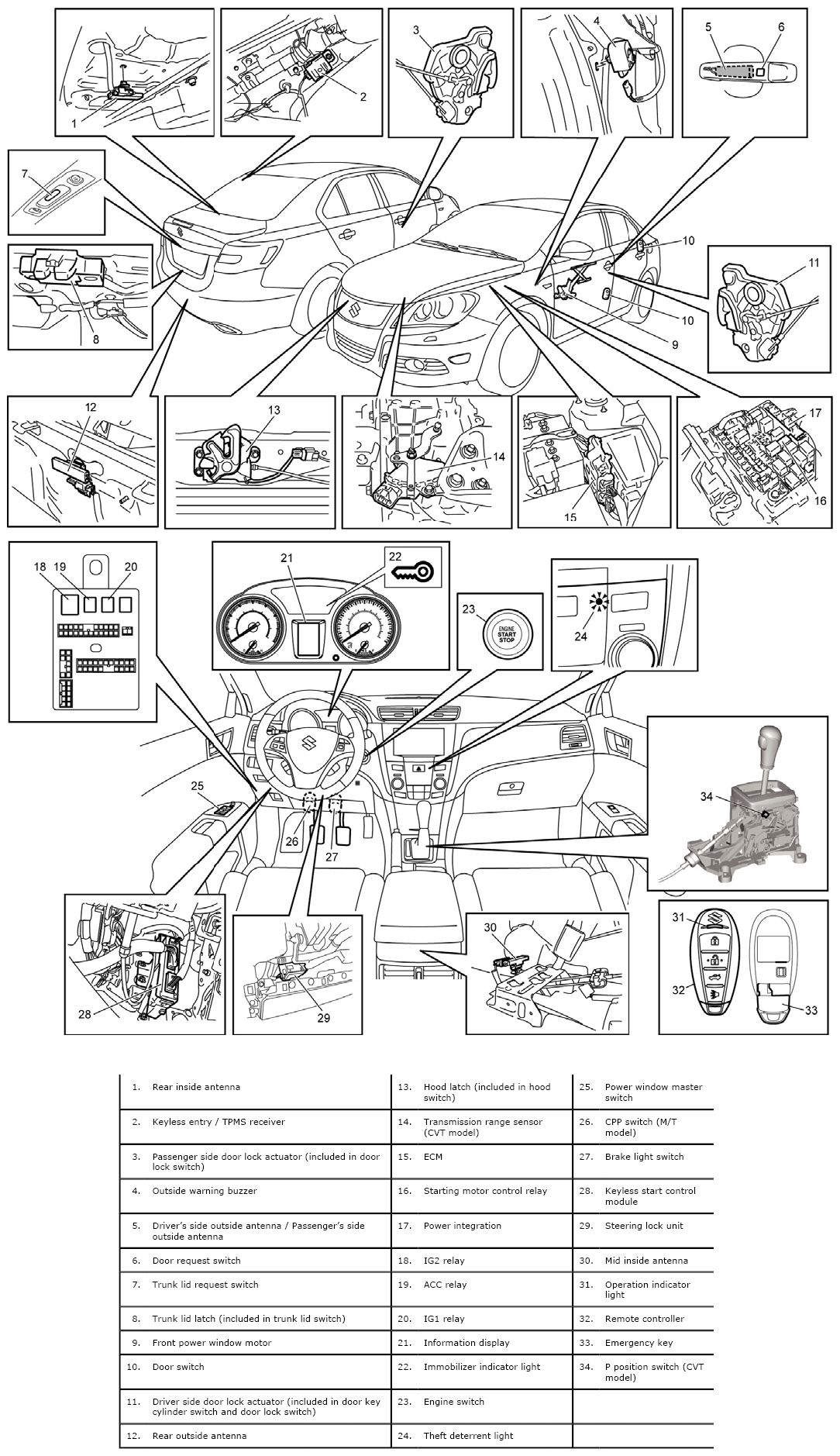

Fig 1: Identifying Keyless Start System Component Location
Courtesy of SUZUKI OF AMERICA CORP.
