DTC B1162: Steering Lock Unit Internal Defect
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram
WARNING:
This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

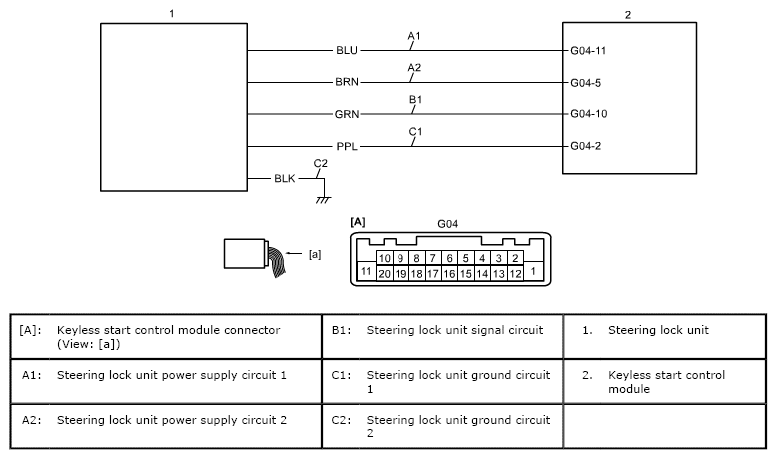

Fig 1: Steering Lock Unit Internal Defect Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
